NEC_parts(E): µPD101C (IC)
Schematics, Circuit-diagram / Data-sheet

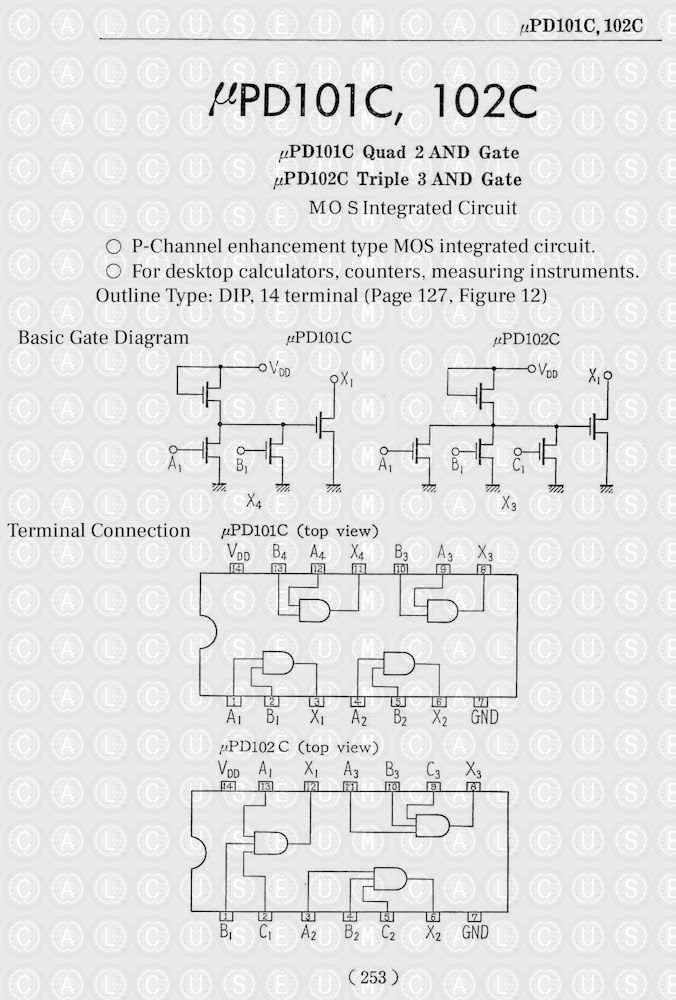

1. Basic Gate diagram, Terminal connection
(Courtesy of: CABOD Jared)
