WANG_perips: 380 (Programming Keyboard) Series 300-360
(Page 1/1)


AKA: ELECTRONIC CALCULATOR, AKA (Label): ELECTRONIC CALCULATOR, KEYBOARD, Product number (P/N): 380,
Keywords/Tags: 380 | ELECTRONIC CALCULATOR
Date of intro: mar-1968, Origin: USA (List),
Display: Type = Display (Nixie) (List), Brand = RAYTHEON: CK1907; WANG: 340-0004 {10x},
Miscellaneous switch: [SPECIAL_40-(Blank) SPECIAL_20-(Blank) OPERATION_10-(Blank) OPERATION_4-(Blank) CODE_2-(Blank) CODE_1-(Blank) AUTO-STEP LEARN-RUN CH.1-CH.2 ON-(Blank) PROD ACCUM-(Blank) MULT ACCUM-(Blank) ENTRY ACCUM-(Blank)], Indicators: TAPE,
Classification: / Perhiperal,
Featuring: Scientific functions, Programmable, Programmable Steps: 640,
Related with: WANG_docu: 03-0007-0 (Service) 300-Series; WANG_docu: 700-0130 (Instr.) 380, volume 1,
Components: 2341 ... 212 Capacitor(s), 727 Diode(s), 1090 Resistor(s), 312 Transistor(s),
Main Components: WANG: 564; WANG: 5782; WANG: 5844; WANG: F526; WANG: F527; WANG: F528; WANG: F529; WANG: F530; WANG: F531; WANG: F532; WANG: F533; WANG: F534,
Known Serial-numbers: 800657 (List of all S/Ns from WANG_perips)
Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: THE OLD CALCULATOR MUSEUM

Item

Components: Overview

Internals (backPlane)

Internals (backPlane)
S/N: 800657

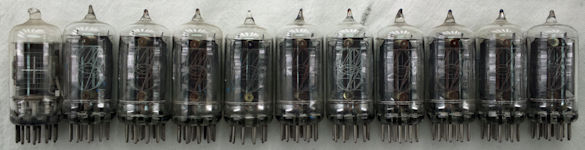

Vacumm tube (socket) / Display (Neon bulb)

Fuse / Switch (power)
S/N: 800657

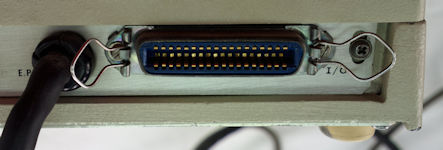

Connector
I/O
S/N: 800657

Display

Catalogue (fragment)

Internals

Internals
S/N: 800657

Internals
Magnetic head
S/N: 800657

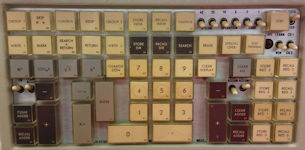

Keyboard

Label, name plate
S/N: 800657

Cassette

Created: 01-oct-2015, Manual-update: 21-nov-2017, Batch-update: 20-jan-2022

# Pageloads since 2018: 59

15 Pic(s),
