CALCUSEUM CANON_parts(E): X61783702 (PCB)

CANON_parts(E): X61783702 (PCB)
(Page 1/1)

	Product number (P/N): X61783702880645 (X61-7837-02, 88-0645), Keywords/Tags: X61783702880645 (X61-7837-02, 88-0645) \| 880645 (88-0645) Date of intro: ~1969, Dimensions: 270x120mm, Classification: / Part / PCB, Components: 208 Diode(s), 66 Transistor(s), 6 IC(s), Main Components: TEXAS INSTRUMENTS: SN158093N {3x}; TEXAS INSTRUMENTS: SN4554N {2x}; TEXAS INSTRUMENTS: SN4559N {1x}; HITACHI: 2SC641 {64x}; (Common manufacturer): 2N5449N, Used in: CANON: 162PD
Item

Product number (P/N): X61783702880645 (X61-7837-02, 88-0645),
Keywords/Tags: X61783702880645 (X61-7837-02, 88-0645) | 880645 (88-0645)
Date of intro: ~1969, Dimensions: 270x120mm,
Classification: / Part / PCB,
Components: 208 Diode(s), 66 Transistor(s), 6 IC(s),
Main Components: TEXAS INSTRUMENTS: SN158093N {3x}; TEXAS INSTRUMENTS: SN4554N {2x}; TEXAS INSTRUMENTS: SN4559N {1x}; HITACHI: 2SC641 {64x}; (Common manufacturer): 2N5449N,
Used in: CANON: 162PD

Item

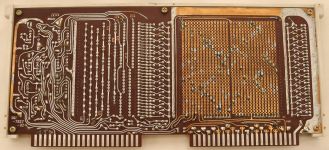

Internals (PCB bottom)	PCB components overview
