CALCUSEUM CANON_parts(E): X61684203 (PCB)

CANON_parts(E): X61684203 (PCB)
(Page 1/1)

	Product number (P/N): X61684203880472 (X61-6842-03, 88-0472), Keywords/Tags: X61684203880472 (X61-6842-03, 88-0472) \| 880472 (88-0472) \| 1622 (162-2) Date of intro: ~1969, Dimensions: 270x120mm, Classification: / Part / PCB, Components: 72 Diode(s), 3 Transistor(s), 21 IC(s), Other components: TEXAS INSTRUMENTS: SN3925N {15x}; TEXAS INSTRUMENTS: SN4552N {1x}; TEXAS INSTRUMENTS: SN4553N {1x}; TEXAS INSTRUMENTS: SN4554N {4x}; HITACHI: 2SC641 {3x}, Used in: CANON: 162PD
Item

Product number (P/N): X61684203880472 (X61-6842-03, 88-0472),
Keywords/Tags: X61684203880472 (X61-6842-03, 88-0472) | 880472 (88-0472) | 1622 (162-2)
Date of intro: ~1969, Dimensions: 270x120mm,
Classification: / Part / PCB,
Components: 72 Diode(s), 3 Transistor(s), 21 IC(s),
Other components: TEXAS INSTRUMENTS: SN3925N {15x}; TEXAS INSTRUMENTS: SN4552N {1x}; TEXAS INSTRUMENTS: SN4553N {1x}; TEXAS INSTRUMENTS: SN4554N {4x}; HITACHI: 2SC641 {3x},
Used in: CANON: 162PD

Item

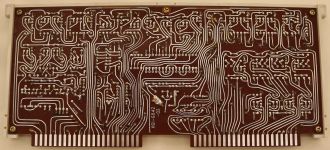

Internals (PCB bottom)	PCB components overview
