CALCUSEUM CANON_parts(E): X61684401 (PCB)

CANON_parts(E): X61684401 (PCB)
(Page 1/1)

	Product number (P/N): X61684401880474880475 (X61-684401, 88-0474, 88-0475), Keywords/Tags: X61684401880474880475 (X61-684401, 88-0474, 88-0475) \| 880474 (88-0474) \| 880475 (88-0475) Date of intro: ~1969, Dimensions: 270x120mm, Classification: / Part / PCB, Components: 24 Diode(s), 24 IC(s), Other components: TEXAS INSTRUMENTS: SN3920N {5x}; TEXAS INSTRUMENTS: SN3925N {12x}; TEXAS INSTRUMENTS: SN3931N {7x}; TEXAS INSTRUMENTS: SN4554N {1x}; HITACHI: 2SC641 {3x}, Used in: CANON: 162PD
Item

Product number (P/N): X61684401880474880475 (X61-684401, 88-0474, 88-0475),
Keywords/Tags: X61684401880474880475 (X61-684401, 88-0474, 88-0475) | 880474 (88-0474) | 880475 (88-0475)
Date of intro: ~1969, Dimensions: 270x120mm,
Classification: / Part / PCB,
Components: 24 Diode(s), 24 IC(s),
Other components: TEXAS INSTRUMENTS: SN3920N {5x}; TEXAS INSTRUMENTS: SN3925N {12x}; TEXAS INSTRUMENTS: SN3931N {7x}; TEXAS INSTRUMENTS: SN4554N {1x}; HITACHI: 2SC641 {3x},
Used in: CANON: 162PD

Item

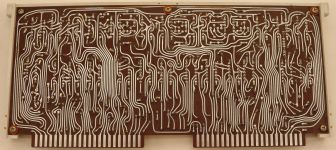

Internals (PCB bottom)	PCB components overview
