HP_parts(E) (Page 2/2) |
|||
| | | | | | | | | |
|---|---|---|---|---|---|---|---|---|---|
| (GoTo page 1/2) |
09100-66515 (Assy: Hor. Deflection Amplifier for 9100*) |
09100-66516 (Assy: Ver. Deflection Amplifier for 9100*) |
0982566513 (PCB) Rev.B |
1130-0506 (LED Display) |

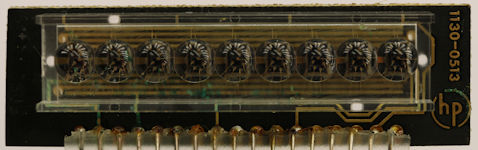

1130-0513 (LED Display) |
1130-0514 (LED Display) |
1135-0243 (LED Display) |
1854-0234 (Transistor NPN Si 2N3440) |
1901-0025 (Diode Si 100mA 500nA 150V 12pf) |
| | | | | | | | |
|
|---|---|---|---|---|---|---|---|---|---|
| 1901-0040 (Diode Si) |
1990-0335 (LED Display) |
2100-2533 (Resistor var. Comp 10k/2k/3k 20%) |
5080-4658 (Transistor NPN Si 2N3638) |
5080-4660 (Transistor NPN Si 2N3906) |
5080-4663 (Transistor NPN Si) |
5080-4670 (Transistor NPN Si 2N3904) |
5080-9030 (Transistor NPN Si) |
9140-0210 (Coil Molded Choke 100UH 5% .375x.155) |
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|
| Updated: 03-dec-2023 (100% info) |
|
