GENERAL: 801
(Page 1/1)


AKA: TEKNIKA 801, Product number (P/N): 801,
Keywords/Tags: 801 | TEKNIKA
Date of intro: ~1972, Dimensions: 217x146x62mm,
Power: AC,
Display: Type = Display (VFD tube) (List), Digits = 8+1,
Keyboard: Reed-switch, Number of keys: 20, #Key-Black: 17, #Key-Grey: 2, #Key-Orange: 1,
Keyboard Array (Rows x Columns): 04x06, Keyboard Layout: [7] [8] [9] [-] [(Division)] [(ArrowLeft)(ArrowRight)] - [4] [5] [6] [+] [x] [P] - [1] [2] [3] [C] - [0] [.] [=] [CE],
Miscellaneous switch: [(Blank)-K],
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), calculator-chipset,
Related with: GENERAl_parts: (Box) 801,
Main Components: GENERAL: EDC801PCB1D; GENERAL: EDC8013BFU,
Known Serial-numbers: 2278 (List of all S/Ns from GENERAL)
Collector value: 8/10,
Courtesy of: LÉTÉ Fabrice,

Item

Bottom
(Courtesy of: LÉTÉ Fabrice)

Internals
(Courtesy of: LÉTÉ Fabrice)

Internals
(Courtesy of: LÉTÉ Fabrice)

Internals
(Courtesy of: LÉTÉ Fabrice)

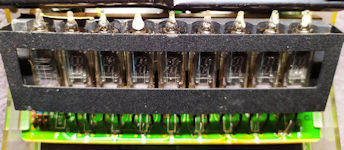

Internals (display)
(Courtesy of: LÉTÉ Fabrice)

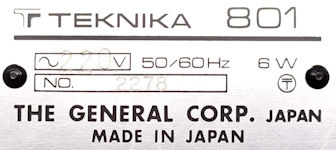

Label, name plate
S/N: 2278
(Courtesy of: LÉTÉ Fabrice)

Created: 03-dec-2016, Manual-update: 12-sep-2021, Batch-update: 10-nov-2024

# Pageloads since 2018: 21

7 Pic(s),
