OMRON: 1210 (version-1)
(Page 1/1)

	Year: sep-1969, Power: AC, Display: Type = Tubes: ITRON, Digits = 12, Extra Display features: Type = Neon lamp, Quantity = 3, Featuring: Logic-technology: LSI (Large Scale Integration), Decimal switch: [0-3-6-9], Indicators: (ArrowLeft) (Minus) M, Main Components: OMRON: T25; OMRON: T29; OMRON: T30; OMRON: T31; OMRON: T32; OMRON: T33R, Collector value: 9/10, Courtesy of: CALCUSEUM (DEVIDTS Serge), Info: First calculator from OMRON. Big brother of the 1200 model, but supporting memory. Amazing number of components, given the volume of the case. Internet: Link-1
..Item

Year: sep-1969,
Power: AC,
Display: Type = Tubes: ITRON, Digits = 12, Extra Display features: Type = Neon lamp, Quantity = 3,
Featuring: Logic-technology: LSI (Large Scale Integration),
Decimal switch: [0-3-6-9], Indicators: (ArrowLeft) (Minus) M,
Main Components: OMRON: T25; OMRON: T29; OMRON: T30; OMRON: T31; OMRON: T32; OMRON: T33R,
Collector value: 9/10,
Courtesy of: CALCUSEUM (DEVIDTS Serge),
Info: First calculator from OMRON.
Big brother of the 1200 model, but supporting memory.
Amazing number of components, given the volume of the case.
Internet: Link-1

..Item

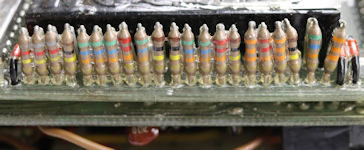

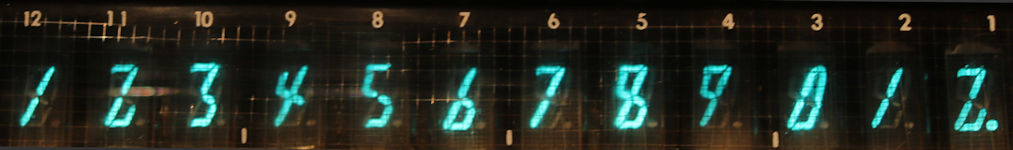

..Internals: Keyboard	..Power Supply	..PCB #1	..PCB #1: Upright resistors, many component are also plasticized	..PCB #1+2: Sandwich-design	..PCB #2	..Semiconductor	..Display Very strange number-readout	..Advertisement (J) (Courtesy of: DENTAKU MUSEUM) Link-1
