BURROUGHS: C3316 (version-2)
(Page 1/1)


AKA: C 3300, AKA (Label): C 3316 SERIES, Product number (P/N): C3316 (C 3316),
Keywords/Tags: C3316 (C 3316)
Date of intro: 1971, Origin: Japan (List), Dimensions: 415x345x120mm,
Power: AC,
Display: Type = Display (Nixie) (List), Digits = 16,
Number of keys: 29, #Key-Grey: 11, #Key-Red: 1, #Key-White: 17,
Decimal switch: [12-8-6-4-3-2-1-0], Miscellaneous switch: [=-(Sigma)-I (Multiply/Divide)-(Sigma)-II], Indicators: (Minus) E I II,
Classification: / Desktop with Display / Memory (core),
Featuring: Memories: 2, Cores (18x12), Memory-technology: Memory (core),
Known Serial-numbers: 0014184 | C010621101 (C-010621-101) (List of all S/Ns from BURROUGHS)
Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Internals / Memory (core)
Core
S/N: 0014184
MEMORY PLANE, TYPE NO.AE18X12A/S1508

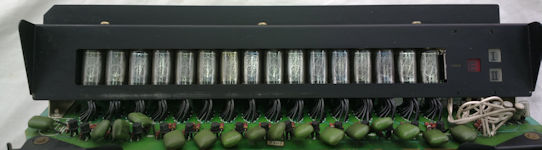

Internals (display)

Internals (keyboard)

Internals (power supply)

Internals (PCB)
#1: Back
722801EHEC011EPA (7228-01E, H.E.C.011 EPA)

Internals (PCB)
#1: Front
722801EB11447PCBE (7228-01E, B11 447-PCB E)

Internals (PCB)
#2: Back
72282D (7228-2D)

Internals (PCB)
#2: Front
72282D (7228-2D)

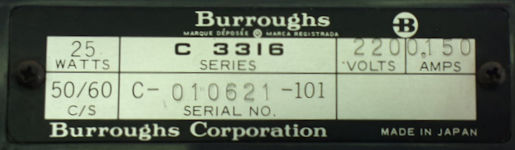

Label, name plate
S/N: C010621101 (C-010621-101)

Manual-update: 08-oct-2015, Batch-update: 24-jun-2022

# Pageloads since 2018: 100

10 Pic(s),
