COMMODORE: 301
(Page 1/1)


Product number (P/N): 301,
Date of intro: ~1974, Origin: Japan (List),
Power: Rechargeable, Adaptor: COMMODORE_adaptors: 801,
Display: Type = Display (LED) (List),
Number of keys: 17, #Key-Black: 17,
Miscellaneous switch: [K-(ArrowUp) ON-(Blank)],
Classification: / Pocket,
Featuring: Logic-technology: VLSI (Very Large Scale Integration), calculator-on-a-Chip,
Main Components: TEXAS INSTRUMENTS: TMS0103NC,
Serie-members: COMMODORE: 301; COMMODORE: 301A,
Known Serial-numbers: 011823 | 013235 (List of all S/Ns from COMMODORE)
Collector value: 8.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Box

Box (internals)

Accessories

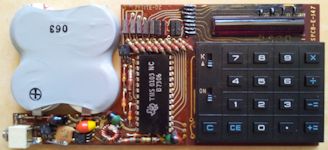

Internals (PCB)
(Courtesy of: HOARAU Phylip)
#PETITE02SPCBE147 (PETITE-02, SPCB-E-147)

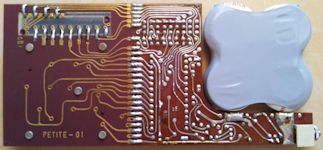

Internals (PCB bottom)
(Courtesy of: HOARAU Phylip)
#PETITE01 (PETITE-01)

Assembly+Disassembly
(Courtesy of: HOARAU Phylip)

Instructions

Instructions
Model 301 Calculator
(Courtesy of: HOARAU Phylip)

Warranty

Misc

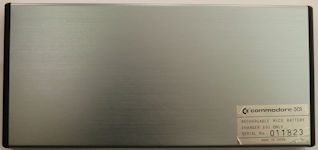

Label / Bottom

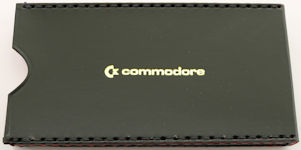

Protection (pouche)

Created: 30-nov-2012, Manual-update: 22-jul-2019, Batch-update: 18-sep-2019

# Pageloads since 2018: 42

13 Pic(s),
