INDUSTRIA MACCHINE ELETTRONICHE (IME): 400
(Page 1/1)


AKA: 401, AKA (Label): Model 400, Product number (P/N): 400,
Keywords/Tags: 400
Date of intro: 1972, Origin: Italy (List), Dimensions: 240x189x70mm,
Power: AC,
Display: Type = Display (Gas disharge) (List), Brand = USHIO ELECTRIC: TB4625, Digits = 10+1,
Number of keys: 17, #Key-Blue: 6, #Key-White: 11,
Round switch: [N-5/4-N], Miscellaneous switch: [K-N],
Classification: / Desktop with Display,
Main Components: TEXAS INSTRUMENTS: TMS0106NC,
Original Equipment Manufacturer : BUSICOM: 100DA, Made by: BUSICOM (List of all Import-OEM-models for INDUSTRIA MACCHINE ELETTRONICHE (IME)),
Known Serial-numbers: 52700831 | 52703191 | 52704155 | 52706345 (List of all S/Ns from INDUSTRIA MACCHINE ELETTRONICHE (IME))
Collector value: 8.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Internals

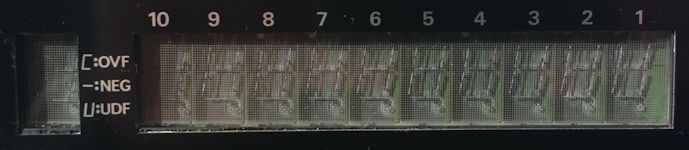

Internals (display)

Internals (keyboard)

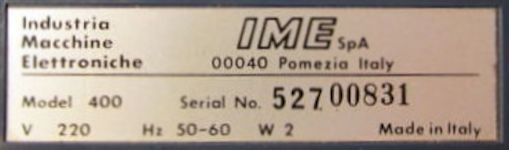

Label, name plate
S/N: 52700831

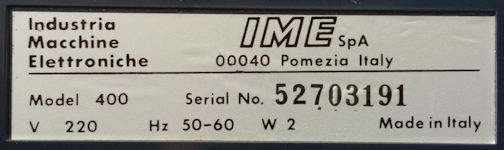

Label, name plate
S/N: 52703191

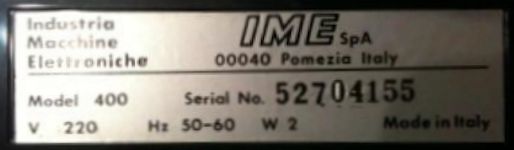

Label, name plate
S/N: 52704155

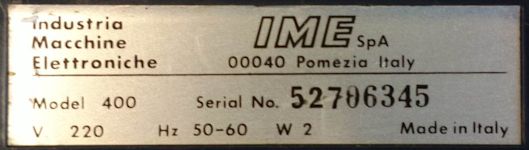

Label, name plate
S/N: 52706345

Created: 15-jan-2014, Manual-update: 23-apr-2017, Batch-update: 23-may-2022

# Pageloads since 2018: 46

8 Pic(s),



If you have a (better) personal picture and/or missing info about any model not listed: Please do send a Mail
