INDUSTRIA MACCHINE ELETTRONICHE (IME)_perips: KB2 (Console) 84M,84RC
(Page 1/1)


Product number (P/N): KB2,
Keywords/Tags: KB2
Date of intro: 1964, Dimensions: 395x170x170mm, Weight: 2730g,
Display: Type = Display (Nixie) (List), Digits = 16, Extra Display features: Type = Display (Neon bulb) (List), Quantity = 9, Extra Display features: Type = Display (Incandescent bulb) (List), Quantity = 7,
Number of keys: 29, #Key-Black: 7, #Key-Blue: 2, #Key-Green: 1, #Key-Red: 4, #Key-White: 14, #Key-Yellow: 1,
Indicators: (Red) (White){4x},
Classification: / Perhiperal / Keyboard / Console,
Related with: (Docu_Articles): 196602: Viewing the new Calculators; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Broch.) KB2; #2561#,
Related with: INDUSTRIA MACCHINE ELETTRONICHE (IME): 84M, INDUSTRIA MACCHINE ELETTRONICHE (IME): 84RC,
Main Components: INDUSTRIA MACCHINE ELETTRONICHE (IME): 560029; INDUSTRIA MACCHINE ELETTRONICHE (IME): 560115; INDUSTRIA MACCHINE ELETTRONICHE (IME): 56009702; INDUSTRIA MACCHINE ELETTRONICHE (IME): 56007901,
Known Serial-numbers: 52300176 (List of all S/Ns from INDUSTRIA MACCHINE ELETTRONICHE (IME)_perips)
Collector value: 9.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: Up to 4 consoles could be connected
Internet: Link-1

Item

Internals
Click-Rotate mechanisme between Keyboard and Display

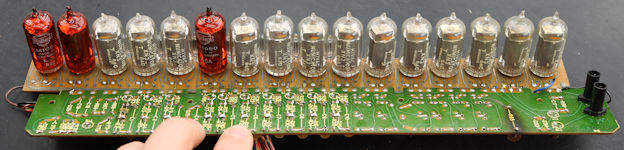

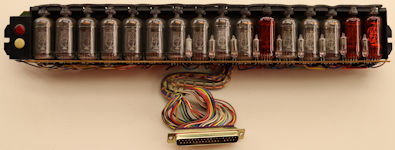

Internals (display)

Internals (display)

Internals (display)

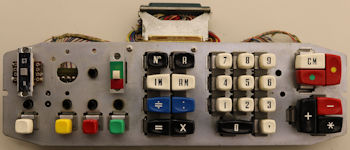

Internals (keyboard)

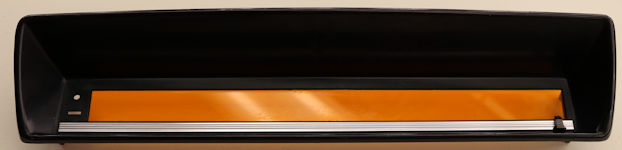

Panel, cabinet / Display

Panel, cabinet

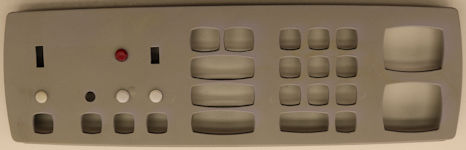

Panel, cabinet / Keyboard

Panel, cabinet

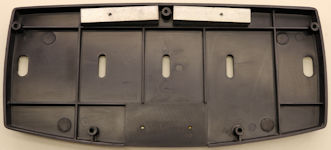

Bottom (reinforced)

Catalogue (fragment)

Bottom

Perspective

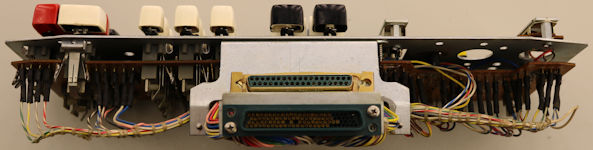

Internals / Connector

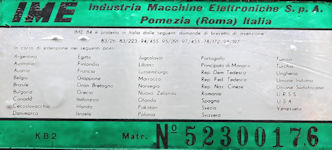

Label, name plate
S/N: 52300176
