BOWMAR: 90422 (version-1)
(Page 1/1)


AKA (Label): MODEL 90422, Product number (P/N): 90422,
Keywords/Tags: 90422
Date of intro: ~1973, Origin: USA (List),
Power: AC,
Display: Type = Display (PANAPLEX II) (List), Brand = BURROUGHS: BR12259, Digits = 8+1,
Number of keys: 18,
Decimal switch: [DECIMAL SET_4-3-2-F], Miscellaneous switch: [ON-OFF],
Classification: / Desktop with Display,
Certification: 914C(UL) (List All UL's),
Main Components: TEXAS INSTRUMENTS: TM?0103NC,
Serie-members: BOWMAR: 90422 (version-1) (Beige); BOWMAR: 90422 (version-2) (Red); BOWMAR: 90422 (version-3) (Yellow),
Known Serial-numbers: 1121?1 | 113607 (List of all S/Ns from BOWMAR)
Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Display

Internals
(Marked: OCT 5 1973)

Internals (PCB)
PM903401F (PM903-401/F)

Internals (PCB)

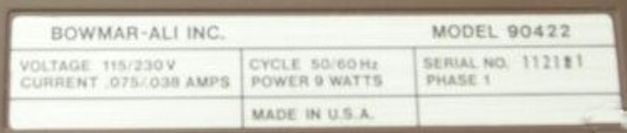

Label, name plate
S/N: 1121?1

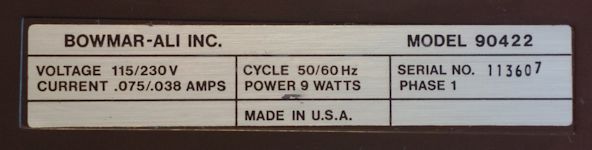

Label, name plate
S/N: 113607
