SCHNEIDER: EXA210
(Page 1/1)


AKA: 18511, Product number (P/N): EXA210,
Keywords/Tags: EXA210 | 18511
Date of intro: 1970, Origin: France (List), Dimensions: 380x310x120mm, Weight: 5500g,
Power: AC,
Display: Type = Display (Nixie) (List), Digits = 14, Extra Display features: Type = Display (Incandescent bulb) (List), Quantity = 2,
Number of keys: 23, #Key-Black: 7, #Key-Blue: 2, #Key-Beige: 13, #Key-White: 1,
Keyboard Array (Rows x Columns): 04x07, Keyboard Layout: [K] [7] [8] [9] [CR] [-] [RM] - [CE] [4] [5] [6] [x] [(Division)] [M+] - [C] [1] [2] [3] [M-] - [0] [.] [=] [CM],
Classification: / Desktop with Display,
Featuring: Logic-technology: SSI: TTL (Transistor Transistor Logic),
Main Components: (Common manufacturer): FCJ111; (Common manufacturer): FCJ121; (Common manufacturer): FCH141; (Common manufacturer): FCH181; (Common manufacturer): FCH311,
Collector value: 8.5/10,
Internet: Link-1

!!! This item is WANTED to join the collection !!!

Item

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals
(Courtesy of: DESCURNINGES Bruno)

Internals (PCB)
(Courtesy of: DESCURNINGES Bruno)

Internals (PCB)
(Courtesy of: DESCURNINGES Bruno)
4536502 (453650/2)

Internals (PCB)
(Courtesy of: DESCURNINGES Bruno)
4536522 501183B (453652/2 501182B)

Internals (PCB)
(Courtesy of: DESCURNINGES Bruno)
4536512 501182B (453651/2 501182B)

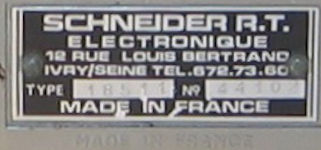

Label, name plate

Created: 23-jan-2008, Manual-update: 08-jul-2021, Batch-update: 26-feb-2024

# Pageloads since 2018: 141

12 Pic(s),
