RICOH: 1215S
(Page 1/1)


AKA: RICOMAC 1215S, AKA (Label): 7473-01, Product number (P/N): 747301 (7473-01),
Keywords/Tags: 747301 (7473-01) | 1215S
Date of intro: ~1972, Dimensions: 325x250x92mm, Weight: 3000g,
Power: AC,
Display: Type = Display (VFD tube) (List), Digits = 12+1,
Number of keys: 26, #Key-Grey: 4, #Key-Red: 1, #Key-White: 21,
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), calculator-chipset,
Main Components: AMERICAN MICRO SYSTEMS (AMI): 12101; AMERICAN MICRO SYSTEMS (AMI): 12102; AMERICAN MICRO SYSTEMS (AMI): 12103,
Other components: HITACHI: HD3233P {2x},
Original Equipment Manufacturer : UNICOM: 1215S (List of all Export-OEM-models from RICOH), Made by: UNICOM (List of all Import-OEM-models for RICOH),
Collector value: 8/10,
Internet: Link-1: DENTAKU MUSEUM

Item

Internals / Internals (keyboard)
(Courtesy of: YOSHIDA T.)
74642002 (74642002), 74642004 (74642004), ...

Internals
(Courtesy of: YOSHIDA T.)

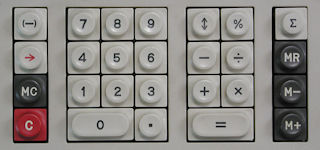

Keyboard
(Courtesy of: YOSHIDA T.)

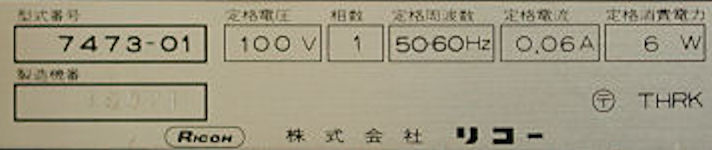

Label, name plate

Created: 04-jul-2010, Manual-update: 23-dec-2016, Batch-update: 16-may-2022
