DIGITRON: Scalar
(Page 1/1)


Product number (P/N): Scalar,
Keywords/Tags: Scalar
Date of intro: ~1978,
Power: AC,
Display: Type = Display (VFD) (List), Digits = 12+1,
Number of keys: 31, #Key-Black: 12, #Key-Red: 3, #Key-White: 16,
Keyboard Array (Rows x Columns): 05x08, Keyboard Layout: [GT] [#/P] [FEED] - [*M] [+M] [7] [8] [9] [-] [+=M] [%] - [(Rhombus)M] [-M] [4] [5] [6] [+] [-=M] [x] - [GPM] [1] [2] [3] [(Rhombus)] [(Division)] - [C/CE] [0] [00] [.] [*] [=],
Decimal switch: [F-4-3-2-0-ADD], Round switch: [(ArrowUp)-5/4-(ArrowDown)], Miscellaneous switch: [NP-(Blank) GT-(Blank) ICP-(Blank)],
Classification: / Desktop with Display+Printer,
Featuring: Procent, Logic-technology: VLSI (Very Large Scale Integration), calculator-on-a-Chip,
Known Serial-numbers: 017110 (List of all S/Ns from DIGITRON)
Collector value: 7/10,
Courtesy of: HALASZ Boris,

Item

Additional picture
(Courtesy of: HALASZ Boris)

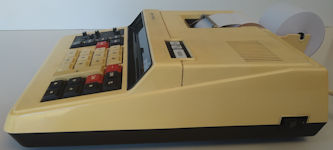

Side / Switch (power)
(Courtesy of: HALASZ Boris)

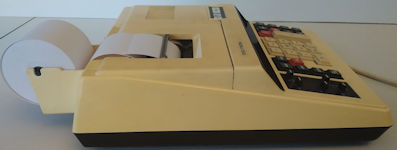

Side
(Courtesy of: HALASZ Boris)

Rear / Label, name plate
S/N: 017110
(Courtesy of: HALASZ Boris)
