DIGITRON: Vektor 3
(Page 1/1)


Product number (P/N): Vektor3 (Vector 3),
Keywords/Tags: Vektor3 (Vector 3) | 3
Date of intro: ~1987, Origin: Yugoslavia (List), Dimensions: 344x234x86mm, Weight: 3500g,
Power: AC,
Display: Type = Display (VFD) (List),
Number of keys: 37, #Key-Black: 20, #Key-Grey: 4, #Key-Orange: 8, #Key-Red: 2, #Key-White: 3,
Keyboard Array (Rows x Columns): 05x10, Keyboard Layout: [GPM] [#/P] [FEED] - [*II] [IC] [%] [7] [8] [9] [x] [(Division)] [*M] - [(Rhombus)II] [(SquareRoot)] [+/-] [4] [5] [6] [-] [=] [(Rhombus)M] - [-=II] [C] [1] [2] [3] [+] [(Rhombus)] [-=M] - [+=II] [CE] [0] [00] [000] [.] [*] [+=M],
Decimal switch: [ADD-F-0-2-3-4-6], Round switch: [(ArrowUp)-5/4-(ArrowDown)], Miscellaneous switch: [GT-NGT OFF-(Sigma)I-(Sigma)II IC-P-NP],
Classification: / Desktop with Display+Printer,
Featuring: Procent, Square root, Logic-technology: VLSI (Very Large Scale Integration), calculator-on-a-Chip,
Main Components: NEC: D1257G,
Other components: (Unknown manufacturer): LB1274 {4x},
Serie-members: DIGITRON: Vektor 14; DIGITRON: Vektor 2; DIGITRON: Vektor 3; DIGITRON: Vektor 30,
Known Serial-numbers: 00442587 (004425 /87) (List of all S/Ns from DIGITRON)
Collector value: 7/10,
Courtesy of: HALASZ Boris,

Item

Perspective, profile view
(Courtesy of: HALASZ Boris)

Internals
(Courtesy of: HALASZ Boris)

Internals (keyboard)
(Courtesy of: HALASZ Boris)

Internals (power supply)
(Courtesy of: HALASZ Boris)

Internals (printer)
(Courtesy of: HALASZ Boris)

Label, name plate / Bottom
(Courtesy of: HALASZ Boris)

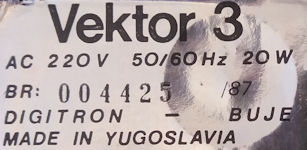

Label, name plate
S/N: 00442587 (004425 /87)
(Courtesy of: HALASZ Boris)
