DIGITRON: omega
(Page 1/1)


AKA (Label): MODEL OMEGA, Product number (P/N): omega,
Keywords/Tags: omega
Date of intro: 1977, Origin: Yugoslavia (List), Dimensions: 260x230x100mm,
Power: AC,
Display: Type = Display (None) (List), Extra Display features: Type = Display (LED: as bulb) (List), Quantity = 3,
Number of keys: 30, #Key-Orange: 8, #Key-Red: 1, #Key-White: 21,
Keyboard Array (Rows x Columns): 04x09,
Decimal switch: [A-F-0-2-3-4-6], Round switch: [5/4-(ArrowDown)], Indicators: OVERFLOW MEMORY_I MEMORY_II,
Classification: / Desktop with Printer,
Featuring: Procent, Memories: 2,
Related with: DIGITRON_docu: (Ad.) *: alfa,omega,
Components: 3 IC(s),
Main Components: DIGITRON: db1520RP; DIGITRON: db1520RP2-1,
Serie-members: DIGITRON: alfa; DIGITRON: omega,
Known Serial-numbers: 77104368 (77 10 4368) (List of all S/Ns from DIGITRON)
Collector value: 7.5/10,
Courtesy of: HALASZ Boris,

Item

Internals
(Courtesy of: HALASZ Boris)

Internals (keyboard)
(Courtesy of: HALASZ Boris)

Internals (keyboard)
(Courtesy of: HALASZ Boris)

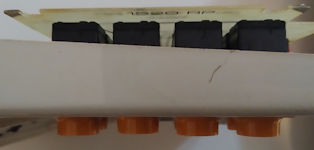

Internals (printer)
(Courtesy of: HALASZ Boris)

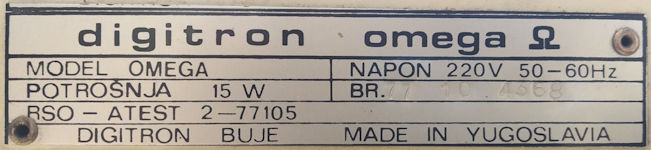

Label, name plate
S/N: 77104368 (77 10 4368)
(Courtesy of: HALASZ Boris)

Created: 02-mar-2022, Manual-update: 02-mar-2022, Batch-update: 10-nov-2024

# Pageloads since 02-mar-2022 : 25

6 Pic(s),
