CALCUSEUM KLING: 514

KLING: 514
(Page 1/1)

	AKA: Pro Cal 514, AKA (Label): Modell.-Nr. 514, Product number (P/N): 514, Keywords/Tags: 514 \| Pro Cal Date of intro: 1970, Origin: Japan (List), Dimensions: 380x270x130mm, Weight: 4700g, Power: AC, Display: Type = Display (Nixie) (List), Digits = 14, Number of keys: 25, #Key-Red: 3, #Key-White: 22, Keyboard Array (Rows x Columns): 04x07, Indicators: M, Classification: / Desktop with Display, Featuring: Memories: 1, Main Components: MITSUBISHI: M5340 {1x}; MITSUBISHI: M5930(21x}; MITSUBISHI: M5936(10x}; MITSUBISHI: M5946(66x}; MITSUBISHI: M5962(17x}, Original Equipment Manufacturer : BROTHER: 514, Resemblance with: DIVERSIFIED ELECTRONICS: 510, Made by: BROTHER (List of all Import-OEM-models for KLING), Known Serial-numbers: G 4045 (List of all S/Ns from KLING) Initial Cost Price: DEM2990, Collector value: 8/10, Courtesy of: SIGG Markus,
Item

AKA: Pro Cal 514, AKA (Label): Modell.-Nr. 514, Product number (P/N): 514,
Keywords/Tags: 514 | Pro Cal
Date of intro: 1970, Origin: Japan (List), Dimensions: 380x270x130mm, Weight: 4700g,
Power: AC,

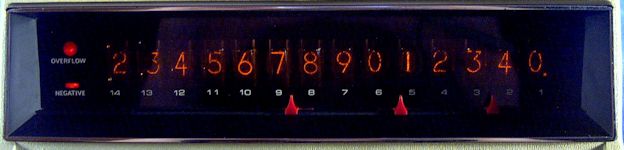

Display: Type = Display (Nixie) (List), Digits = 14,
Number of keys: 25, #Key-Red: 3, #Key-White: 22,
Keyboard Array (Rows x Columns): 04x07,
Indicators: M,
Classification: / Desktop with Display,
Featuring: Memories: 1,
Main Components: MITSUBISHI: M5340 {1x}; MITSUBISHI: M5930(21x}; MITSUBISHI: M5936(10x}; MITSUBISHI: M5946(66x}; MITSUBISHI: M5962(17x},
Original Equipment Manufacturer : BROTHER: 514, Resemblance with: DIVERSIFIED ELECTRONICS: 510, Made by: BROTHER (List of all Import-OEM-models for KLING),

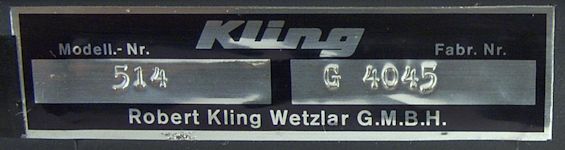

Known Serial-numbers: G 4045 (List of all S/Ns from KLING)
Initial Cost Price: DEM2990, Collector value: 8/10,
Courtesy of: SIGG Markus,

Item

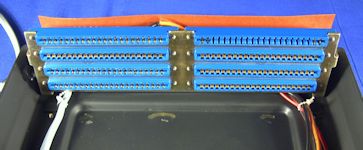

Bottom	Display	Internals	Internals	Internals (display)	Internals (keyboard) / Switch (reed)	Internals (keyboard)	Internals (PCB) PCB BP-331-4 (4/4)	Internals (PCB) PCB BP-332-2 (3/4)	Internals (PCB) PCB BP-333-3 (2/4)
