REMINGTON: EDC1203
(Page 1/1)


AKA (Label): EDC 1203, Product number (P/N): EDC1203 (EDC 1203),
Keywords/Tags: EDC1203 (EDC 1203) | 1203
Date of intro: 1970, Origin: Japan (List), Dimensions: 295x255x103mm, Weight: 2800g,
Power: AC,
Display: Type = Display (Nixie) (List), Digits = 12,
Keyboard: Reed-switch, Number of keys: 20, #Key-Grey: 8, #Key-Red: 1, #Key-White: 11,
Decimal switch: [5-4-3-2-1-0], Miscellaneous switch: [GT_Off-R/O-Cut Off-On],
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), Memories: 2,
Related with: REMINGTON_docu: (Instr.) EDC1203,EDC1603,
Main Components: CASIO: 12Q1C; CASIO: 12Q2C; CASIO: 12QE2; CASIO: 12QE4LA; CASIO: 16KSB; FAIRCHILD: SL35021; FAIRCHILD: SL35022; FAIRCHILD: SL35023; FAIRCHILD: SL35024; FAIRCHILD: SL35025,
Other components: (Unknown maufacturer)_parts(E): SSSR0108; NEC: µPD101C {5x}; HITACHI: HD3103P {3x}; HITACHI: HD3106P; HITACHI: HD3107 {5x}; HITACHI: HD3117; NEC: µPD116C; TOSHIBA: T1191; TOSHIBA: T4097 {3x}; TOSHIBA: TM4114M,
Made by: CASIO (List of all Import-OEM-models for REMINGTON),
Serie-members: REMINGTON: EDC1203 (12 digit); REMINGTON: EDC1603 (16 digit),
Known Serial-numbers: 308298 | 309748 (List of all S/Ns from REMINGTON)
Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Internals / Internals (PCB)

Internals (display) / Internals (keyboard)

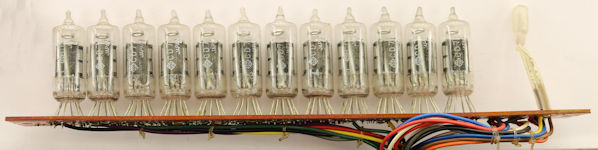

Internals (display)

Internals (PCB)
Bottom+Top

Label, name plate / Bottom
S/N: 309748

Protection (dust cover)

Created: 14-apr-2016, Manual-update: 11-may-2018, Batch-update: 14-jan-2022
