DIGITRON: DB1212
(Page 1/1)


AKA: db 1212, Product number (P/N): db1212,
Keywords/Tags: db1212
Date of intro: ~1974,
Power: AC,
Display: Type = Display (VFD tube) (List), Digits = 12, Extra Display features: Type = Display (Neon bulb) (List), Quantity = 2,
Keyboard: Reed-switch, Number of keys: 25, #Key-Blue: 2, #Key-Red: 3, #Key-White: 20,
Decimal switch: [6-4-3-2-0],
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), calculator-chipset,
Related with: DIGITRON_docu: (Broch.) db1212,
Main Components: UNICOM: 74642002; UNICOM: 74642003; UNICOM: 74642004A,
Original Equipment Manufacturer : UNICOM: 1212, Resemblance with: COMMODORE: 442 (version-1); COMMODORE: 442 (version-2); PRECISA: 1212; RICOH: 1212, Made by: UNICOM (List of all Import-OEM-models for DIGITRON),
Collector value: 8/10,
Courtesy of: NOVINA Robert,

Item

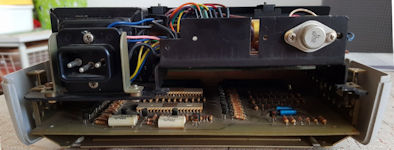

Internals
(Courtesy of: NOVINA Robert)

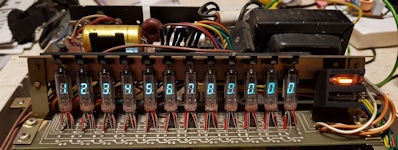

Internals (display)
(Courtesy of: NOVINA Robert)

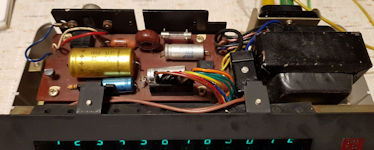

Internals (power supply)
(Courtesy of: NOVINA Robert)
