HOMELAND: 8109
(Page 1/1)


AKA (Label): HOMELAND-8109, Product number (P/N): 8109,
Keywords/Tags: 8109
Date of intro: 1977, Origin: Japan (List), Dimensions: 137x79x20mm, Weight: 100g,
Power: 3V: (AA x2) + Adaptor,
Display: Type = Display (VFD) (List), Brand = FUTABA: 9CT10, Digits = 8+1,
Number of keys: 23, #Key-Grey: 11, #Key-Red: 1, #Key-White: 11,
Keyboard Array (Rows x Columns): 05x05,
Miscellaneous switch: [OFF-ON],
Classification: / Pocket,
Featuring: Procent, Square root, Logic-technology: VLSI (Very Large Scale Integration), calculator-on-a-Chip, Memories: 1,
Main Components: TEXAS INSTRUMENTS: TMS1045NL,
Resemblance with: (Resemblance 009),
Known Serial-numbers: 100935 | 118779 | 128771 | 131871 | 167696 (List of all S/Ns from HOMELAND)
Collector value: 7/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: DATAMATH CALCULATOR MUSEUM, Link-2: CALCULATORCOLLECTION

Item

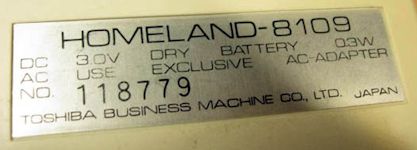

Label, name plate
S/N: 118779

Label, name plate
S/N: 128771

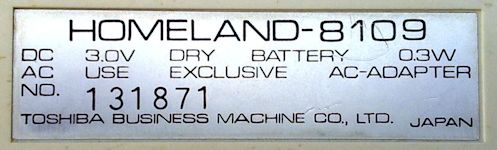

Label, name plate
S/N: 131871

Label, name plate
S/N: 167696
