SANYO: ICC163PS
(Page 2/2)

<- Prev. Page


AKA: ICC-163PS, AKA (Label): MODEL ICC-163PS, Product number (P/N): ICC163PS (ICC-163PS),
Keywords/Tags: ICC163PS (ICC-163PS)
Date of intro: may-1969, Origin: Japan (List), Dimensions: 493x392x156mm,
Power: AC,
Display: Type = Display (None) (List), Extra Display features: Type = Display (Incandescent bulb) (List), Quantity = 24,
Number of keys: 33,
Decimal switch: [0-1-2-3-4-5-6-7-8-9-10-11], Round switch: [A-(ArrowUp)-5/4-(ArrownDown)], Miscellaneous switch: [C-L-R-N],
Classification: / Desktop with Printer,
Featuring: Programmable, Logic-technology: SSI (Small Scale Integration), Memories: 2, Programmable Steps: 63,
Related with: SANYO_docu: (Ad.) *: Auf den ersten Blick... (ICC82D,ICC144,ICC163PS); SANYO_docu: (Ad.) *: Sprechen Sie... (ICC121,ICC141,ICC162,ICC163PS),
Components: 2245 ... 36 Capacitor(s), 895 Diode(s), 1016 Resistor(s), 119 Transistor(s), 179 IC(s),
Main Components: NATIONAL SEMICONDUCTOR: 7196 {4x}; NEC: µPD10 {30x}; NEC: µPD11 {3x}; NEC: µPD13C {21x}; NEC: µPD15C {7x}; NEC: µPD101C {66x}; NEC: µPD102C {20x}; NEC: µPD111C {20x}; NEC: µPD112C {2x},
Other components: (Unknown manufacturer): 608D {8x}; (Unknown manufacturer): 608E; (Unknown manufacturer): 608F; (Unknown manufacturer): 715Da {22x}; (Unknown manufacturer): 715Et {7x}; (Unknown manufacturer): 715Ev {10x}; (Unknown manufacturer): 715Fa {28x}; (Unknown manufacturer): 715Fu {5x}; HITACHI: C641 {13x}; SANKEN: 2SD92 {2x}; SANYO: C423F {20x}; SANYO: C423G {2x},
Serie-members: SANYO: ICC163P; SANYO: ICC163PS,
Known Serial-numbers: S0896097 | S1190928 (List of all S/Ns from SANYO)
Initial Cost Price: 475000 JPY (€ 3.847,50), Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: Big brother of the ICC163P model, but supporting 63 programmable steps.
Printer prints 3.5 chars/s, negative values in red.

Item

Display
(Right)

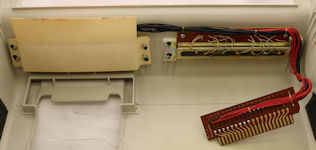

Display / Internals (display)
(Right)

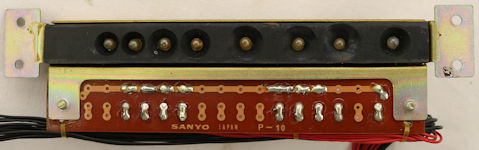

P10 (P-10)

Display / Internals / Internals (PCB)

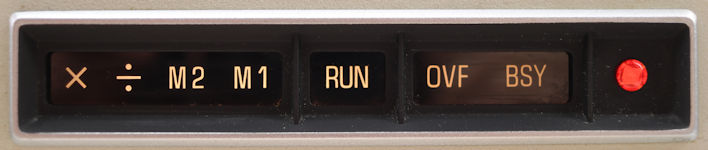

Indicators
P9A (P-9A)

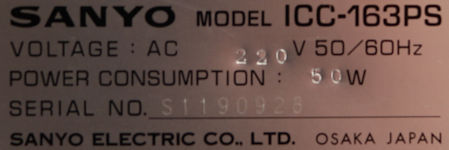

Label, name plate
S/N: S1190928

Label (reseller)
S/N: S1190928
VANDERHEYDEN Rolf
VANDERHEYDEN Rolf

Protection (dust cover)
