CALCUSEUM CANON_parts(E): X61684302 (PCB)

CANON_parts(E): X61684302 (PCB)
(Page 1/1)

	Product number (P/N): X61684302880473 (X61-684302, 880473), Keywords/Tags: X61684302880473 (X61-684302, 880473) \| 880473 (88-0473) \| 1623 (162-3) Date of intro: ~1969, Dimensions: 270x120mm, Classification: / Part / PCB, Other components: (Common manufacturer): T4022A {2x}; TEXAS INSTRUMENTS: SN3920N {1x}; TEXAS INSTRUMENTS: SN3925N {8x}; TEXAS INSTRUMENTS: SN3931N {6x}; TEXAS INSTRUMENTS: SN4554N {6x}, Used in: CANON: 162PD
Item

Product number (P/N): X61684302880473 (X61-684302, 880473),
Keywords/Tags: X61684302880473 (X61-684302, 880473) | 880473 (88-0473) | 1623 (162-3)
Date of intro: ~1969, Dimensions: 270x120mm,
Classification: / Part / PCB,
Other components: (Common manufacturer): T4022A {2x}; TEXAS INSTRUMENTS: SN3920N {1x}; TEXAS INSTRUMENTS: SN3925N {8x}; TEXAS INSTRUMENTS: SN3931N {6x}; TEXAS INSTRUMENTS: SN4554N {6x},
Used in: CANON: 162PD

Item

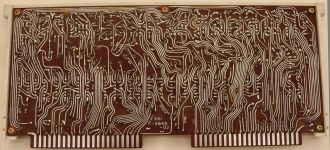

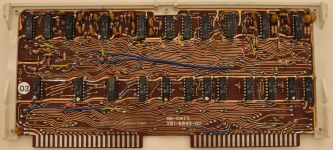

Internals (PCB bottom)	PCB components overview

Created: 17-may-2026, Manual-update: 17-may-2026

# Pageloads since 17-may-2026 : 0

3 Pic(s),
