BUSICOM: 162DE
(Page 1/1)


AKA: 162-DE, AKA (Label): 162-DE, Product number (P/N): 162DE (162-DE),
Keywords/Tags: 162DE (162-DE)
Date of intro: 1971, Dimensions: 298x238x94mm, Weight: 2300g,
Display: Type = Display (VFD tube) (List), Digits = 16,
Number of keys: 33, #Key-Blue: 13, #Key-White: 20,
Decimal switch: [D.P. SELECTOR_9-5-5-4-3-2-1-0], Round switch: [(SquareRoot)N-FL-5/4 RND. POSITION_6-4-3-2-0], Miscellaneous switch: [OFF-ON],
Classification: / Desktop with Display,
Featuring: Square root, Memories: 2,
Related with: BUSICOM_docu: 31307101A00 (Service manual) 162DE,
Main Components: BUSICOM: QP46332; BUSICOM: QP4636; BUSICOM: QP4637; BUSICOM: QP4638; BUSICOM: QP4639; BUSICOM: QP4640,
Known Serial-numbers: 37FB160157 | 37SB140080 (List of all S/Ns from BUSICOM)
Collector value: 9.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Internals (display)

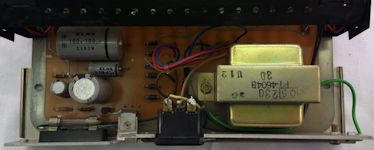

Internals (power supply)

Brochure
Another Outstanding Busicom 3C's Series 16 Digit D
Pag.1/2

Brochure
Another Outstanding Busicom 3C's Series 16 Digit D
Pag.2/2

Brochure
Look at this new multi-feature Busicom!
BROUGHTON & Co.
Pag.1/2

Brochure
Look at this new multi-feature Busicom!
BROUGHTON & Co.
Pag.2/2

Schematics, Circuit-diagram / Service Info (fragment)
Power Supply Circuit 1/2 (Japanese)

Schematics, Circuit-diagram / Service Info (fragment)
Power Supply Circuit 2/2 (English)

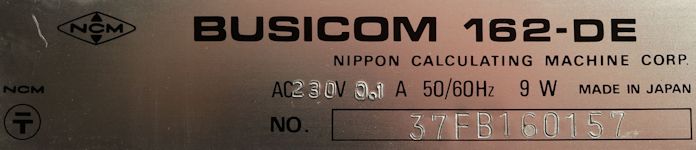

Label, name plate
S/N: 37FB160157

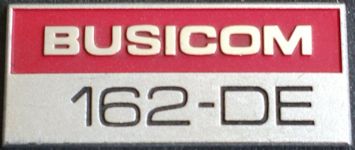

Type, faceplate, trade mark

Serial number
S/N: 37SB140080
