TOSHIBA: BC1217A
(Page 1/1)


AKA: BC-1217A, AKA (Label): ELECTRONIC CALCULATOR BC-1217A, Product number (P/N): BC1217A (BC-1217A),
Keywords/Tags: BC1217A (BC-1217A) | 1217A
Date of intro: ~1973, Origin: Korea (List), Dimensions: 240x166x65mm, Weight: 1300g,
Display: Type = Display (VFD) (List), Brand = TOSHIBA: E6516, Digits = 12+1,
Number of keys: 23, #Key-Black: 5, #Key-Blue: 1, #Key-Green: 4, #Key-Red: 1, #Key-White: 11, #Key-Yellow: 1,
Keyboard Array (Rows x Columns): 05x06,
Decimal switch: [6-4-2-1-0-F], Round switch: [(Blank)-5/4], Miscellaneous switch: [(Blank)-K (Blank)-(Sigma)],
Classification: / Desktop with Display,
Featuring: Procent, Logic-technology: LSI (Large Scale Integration), calculator-chipset / JMOS (Japanese MOS),
Related with: TOSHIBA_docu: 900-036 (Service) BC1217A; TOSHIBA_docu: 901-036 (Service) Parts List BC1217A,
Main Components: NEC: µPD283C; TOSHIBA: D282D,
Other components: NEC: µPD261C; NEC: µPD262C; TOSHIBA: T3084 {2x}; TOSHIBA: TM4303P; TOSHIBA: TM4352P {3x}; TOSHIBA: TD2007P,
Serie-members: TOSHIBA: BC1217 (); TOSHIBA: BC1217A (); TOSHIBA: BC1217C (),
Known Serial-numbers: L14436 (List of all S/Ns from TOSHIBA)
Collector value: 7.5/10,
Internet: Link-1: RECHENKASTEN

Item

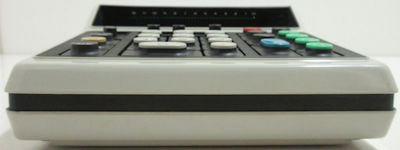

Front

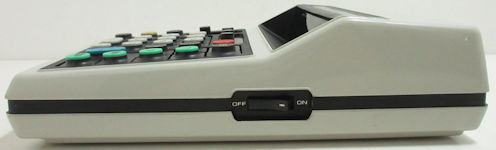

Side

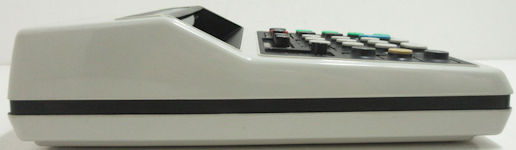

Side

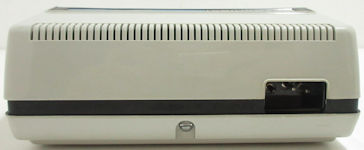

Rear

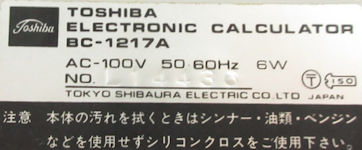

Label, name plate / Bottom

Label, name plate
S/N: L14436

Created: 19-jul-2007, Manual-update: 08-oct-2021, Batch-update: 24-jun-2022

# Pageloads since 2018: 148

7 Pic(s),
