DIEHL CALCULATING SYSTEMS: 323
(Page 1/1)


AKA: (324), AKA (Label): mod. certatronic, Product number (P/N): 323,
Keywords/Tags: 323 | Certatronic
Date of intro: 1974, Origin: Germany (List), Dimensions: 400x330x125mm, Weight: 6500g,
Display: Type = Display (LED: as bulb) (List), Digits = 12,
Number of keys: 50, #Key-Black: 24, #Key-Green: 12, #Key-White: 14,
Keyboard Array (Rows x Columns): 04x12,
Indicators: BUSY,
Classification: / Desktop with Display+Printer,
Featuring: Programmable, Programmable Steps: 1000,
Main Components: DIEHL CALCULATING SYSTEMS: 324-51010,
Serie-members: DIEHL CALCULATING SYSTEMS: 323 (With Display); DIEHL CALCULATING SYSTEMS: 324 (Without Display),
Known Serial-numbers: 32310693 (List of all S/Ns from DIEHL CALCULATING SYSTEMS)
Initial Cost Price: DEM4800, Collector value: 9/10,
Courtesy of: KOGGE Udo,
Internet: Link-1: MUSEUMSSTIFTUNG POST UND TELEKOMMUNIKATION

!!! This item is WANTED to join the collection !!!

Item

Additional picture / Internals (printer)
(Courtesy of: KOGGE Udo)

Additional picture
(Courtesy of: KOGGE Udo)

Bottom
(Courtesy of: KOGGE Udo)

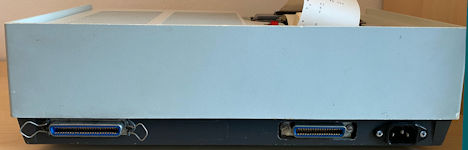

Rear / Connector
(Courtesy of: KOGGE Udo)

Perspective, profile view
(Courtesy of: KOGGE Udo)

Internals
(Courtesy of: KOGGE Udo)

Internals
(Courtesy of: KOGGE Udo)

Internals
(Courtesy of: KOGGE Udo)

Internals
(Courtesy of: KOGGE Udo)

Catalogue (fragment)

Label, name plate
S/N: 32310693
(Courtesy of: KOGGE Udo)
