SHARP: CS824
(Page 1/1)


AKA: ELECTRONIC PRINTING CALCULATOR, Compet 824, AKA (Label): MODEL CS-824, ELECTRONIC CALCULATOR, Product number (P/N): CS824,
Keywords/Tags: CS824 | 824 | ELECTRONIC PRINTING CALCULATOR, Compet
Date of intro: 1972, Origin: Japan (List), Dimensions: 300x270x170mm,
Power: AC,
Display: Type = Display (LED: segmented block) (List), Digits = 12,
Number of keys: 24, #Key-Blue: 4, #Key-Grey: 19, #Key-Red: 1,
Decimal switch: [8-6-4-3-2-1-0], Round switch: [5/4-(ArrowDown)], Miscellaneous switch: [X-N-(Divide) PRINT-NON PRINT], Indicators: E I (Minus),
Printing technology: Printer (metal paper),
Classification: / Desktop with Display+Printer,
Featuring: Procent,
Main Components: NEC: µPD612D; NEC: µPD631D; NEC: µPD641D,
Other components: HITACHI: HD2902P; HITACHI: HD2903P; HITACHI: HD3250P; NEC: µPD121C; NEC: µPD128C {2x}; NEC: µPD303C {2x}; NEC: µPD307C {3x}; NEC: µPD600C,
Known Serial-numbers: 21271210 | 25239305 | 31936904 (List of all S/Ns from SHARP)
Initial Cost Price: DEM2390, Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: SCHLEPPTOPS Rechnerwiki, Link-2: MUSEILLO DEL CÁLCULO Y DE LA INFORMÁTICA

Item

Internals

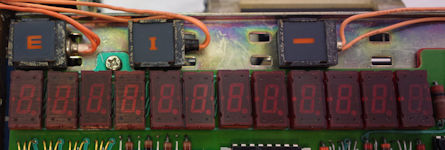

Internals (display)

Internals (power supply)

Internals (printer)
Metal Paper Printer

Internals (PCB)
4092PCB (4092-PCB)

Internals (PCB)
8201

Panel, cabinet

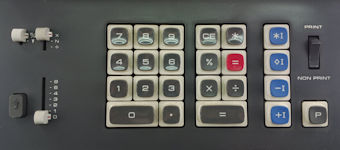

Keyboard

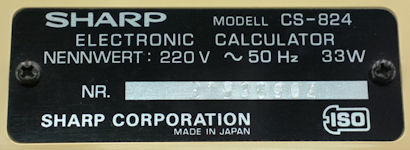

Label, name plate
S/N: 31936904

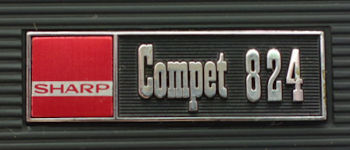

Type, faceplate, trade mark

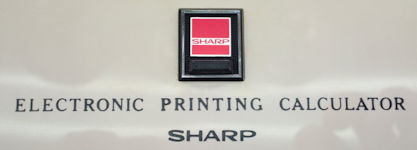

Type, faceplate, trade mark
