OLIVETTI: 328
(Page 1/1)


AKA: LOGOS 328, Product number (P/N): 328,
Keywords/Tags: 328 | LOGOS
Date of intro: 1968, Dimensions: 485x395x268mm,
Power: AC,
Display: Type = Display (None) (List), Digits = 22,
Number of keys: 36, #Key-Black: 6, #Key-Blue: 5, #Key-Grey: 19, #Key-White: 6,
Classification: / Desktop with Printer,
Featuring: Procent, Square root, Logic-technology: DTL (Diode Transistor Logic), discrete components,
Related with: OLIVETTI_docu: (Ad.) 328: An electronic printing calculator...; OLIVETTI_docu: (Ad.) 328: The Olivetti 328: an electronic...,
Known Serial-numbers: 12184 (List of all S/Ns from OLIVETTI)
Collector value: 9.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1, Link-2

Item

Internals

Internals

Internals
L.M.S.
S/N: 12184

Internals / Fan
PCB cage

Internals
PCB cage with dust filter

Internals (keyboard)

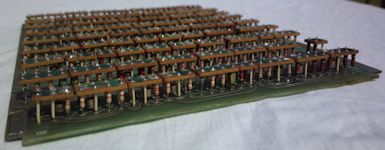

Internals (PCB)

Internals (PCB)

Internals (PCB)
S/N: 12184

Internals (PCB)
#1
(17-mar-1970)
28E08AM7LARES690807620 (28E 08-A M7 LARES-69 0807620)

Internals (PCB)
#2
28E07A0702250 (28E 07-A 0702250)

Internals (PCB)
#3
28E06A0602103 (28E 06-A 0602103)

Internals (PCB)
#4
28E05A050235? (28E 05-A 050235?)

Internals (PCB)
#5
28E04AM70401645 (28E 04-A M7 0401645)

Internals (PCB)
#6
28E03A0302330 (28E 03-A 0302330)

Internals (PCB)
#7
28E02AM70201495 (28E 02-A M7 0201495)

Internals (PCB)
#8
28E01AM70?0159? (28E 01-A M7 0?0159?)

Internals (backPlane)

Label, name plate

Created: 06-apr-2010, Manual-update: 05-apr-2017, Batch-update: 26-feb-2024

# Pageloads since 2018: 212

20 Pic(s),
