SANYO: ICC1213
(Page 1/1)


AKA (Label): MODEL ICC-1213, Product number (P/N): ICC1213 (ICC-1213),
Keywords/Tags: ICC1213 (ICC-1213)
Date of intro: sep-1971, Dimensions: 225x150x60mm, Weight: 1350g,
Power: AC,
Display: Type = Display (Nixie) (List), Brand = NEC: LD8007, Digits = 12+1,
Keyboard: Reed-switch, Number of keys: 22, #Key-Black: 17, #Key-Blue: 5,
Keyboard Array (Rows x Columns): 04x06,
Decimal switch: [6-4-3-2-0], Round switch: [5/4-(Blank)], Miscellaneous switch: [(Sigma)-(Blank) K-(Blank)],
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), calculator-chipset,
Related with: SANYO_docu: (Broch.) ICC1213,
Main Components: SANYO: D231B; SANYO: D232B,
Other components: NEC: µPD233C; NEC: µPD354D; NEC: µPD355C,
Known Serial-numbers: T41910240 (T 41910240) | T5101367 (T 5101367) | T5102316 (T 5102316) | T5106894 (T 6106894) | T5107909 (T 5107909) | T5108152 (T 5108152) (List of all S/Ns from SANYO)
Initial Cost Price: 89500 JPY (€ 724,95), Collector value: 8.5/10,
Internet: Link-1: DENTAKU MUSEUM

!!! This item is WANTED to join the collection !!!

Item

Internals
(Courtesy of: TAKAHARU)

Internals (keyboard)
(Courtesy of: TAKAHARU)

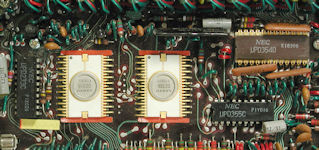

Internals (semiconductor)
(Courtesy of: TAKAHARU)

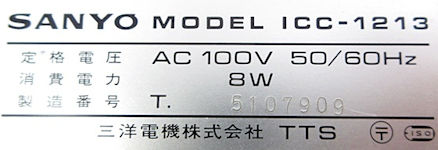

Label, name plate
S/N: T5107909 (T 5107909)
