RICOH: 1610
(Page 1/1)


AKA: RICOMAC 1610, AKA (Label): MODEL 7467-00, Product number (P/N): 746700 (7467-00),
Keywords/Tags: 746700 (7467-00) | 1610
Date of intro: 1971, Origin: Japan (List), Dimensions: 330x255x90mm, Weight: 3000g,
Power: AC,
Display: Type = Display (VFD tube) (List), Digits = 16+2,
Keyboard: Reed-switch, Number of keys: 26, #Key-Black: 4, #Key-Red: 2, #Key-White: 20,
Decimal switch: [F-0-1-2-3-4-5-6-7], Round switch: [(ArrowDown)-5/4-(ArrowUp)], Miscellaneous switch: [K-OFF (Delta)-OFF],
Classification: / Desktop with Display,
Featuring: Procent, Logic-technology: LSI (Large Scale Integration), calculator-chipset,
Related with: (Cables): Female_3-Holes Rectang: 0023x0013x0014,
Main Components: AMERICAN MICRO SYSTEMS (AMI): 16001; AMERICAN MICRO SYSTEMS (AMI): 16002; AMERICAN MICRO SYSTEMS (AMI): 16003; AMERICAN MICRO SYSTEMS (AMI): 16004; AMERICAN MICRO SYSTEMS (AMI): 16005; AMERICAN MICRO SYSTEMS (AMI): 16006,
Resemblance with: RICOH: 1620R,
Serie-members: RICOH: 1610 (1 Memory); RICOH: 1620R (2 Memories + Sqrt),
Known Serial-numbers: 15922 | 18021 | 21483 (List of all S/Ns from RICOH)
Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: DENTAKU MUSEUM

Item

Internals

Internals (PCB bottom) / Internals (keyboard)
74672001 (7467 2001), 74642002 (7464 2002), 74642004 (7464 2004)

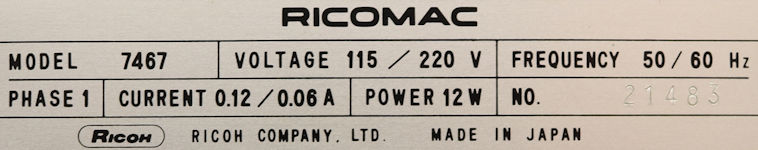

Label, name plate
S/N: 21483

Created: 10-apr-2010, Manual-update: 08-dec-2021, Batch-update: 26-feb-2024

# Pageloads since 2018: 278

4 Pic(s),
