SHARP: CS243V
(Page 1/1)


AKA: Compet 243V, AKA (Label): MODELL CS-243V, ELECTRONIC CALCULATOR, Product number (P/N): CS243V,
Keywords/Tags: CS243V | 243V | Compet
Date of intro: 1973, Origin: Japan (List), Dimensions: 285x225x85mm,
Power: AC,
Display: Type = Display (Gas disharge) (List), Digits = 14, Extra Display features: Type = Display (Incandescent bulb) (List), Quantity = 3,
Keyboard: Reed-switch, Number of keys: 24, #Key-Blue: 4, #Key-Brown: 19, #Key-Red: 1,
Decimal switch: [13-6-4-3-2-1-0], Round switch: [5/4-(ArrowDown)], Indicators: (Minus) I V,
Classification: / Desktop with Display,
Featuring: Memories: 1,
Main Components: NEC: µPD612D; NEC: µPD641D; NEC: D635D,
Other components: MITSUBISHI: M58239; NEC: µPD162C {3x}; NEC: µPD303C; NEC: µPD307C {2x}; NEC: µPD600C; NEC: µPD619C,
Known Serial-numbers: 29000711 (List of all S/Ns from SHARP)
Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: With 'fail-safe' automatic accounts verification system. Like two memories... At the cost of one.

Item

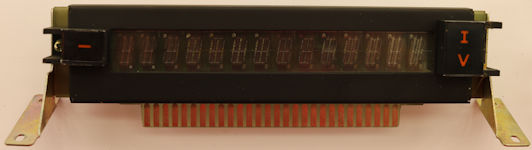

Internals (display)
(Front)
USHIO

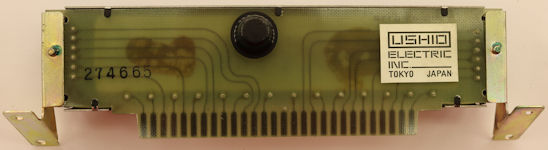

Internals (display)
(Rear)
USHIO
274665

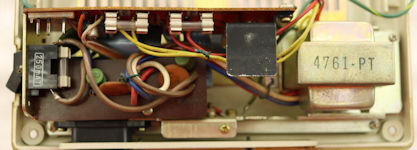

Internals (power supply)

Internals (PCB) / Internals (keyboard)

Internals (PCB)
4063-PWB, 9, 011 EPB

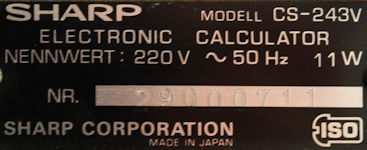

Label, name plate
S/N: 29000711

Label (reseller) / Bottom
STÄHLER Karl
STÄHLER Karl

Created: 05-jul-2016, Manual-update: 09-mar-2017, Batch-update: 26-feb-2024

# Pageloads since 2018: 244

8 Pic(s),
