OLYMPIA: CD602
(Page 1/1)


AKA: CD 602, AKA (Label): MODEL RD 6/1 CD 602, Product number (P/N): CD602 (CD 602),
Keywords/Tags: CD602 (CD 602) | RD61 (RD 6/1)
Date of intro: 1974, Origin: Germany (List), Dimensions: 205x205x65mm,
Power: AC,
Display: Type = Display (VFD) (List), Brand = FUTABA: 9MR01, Digits = 8+1,
Number of keys: 26, #Key-Black: 12, #Key-Grey: 7, #Key-Orange: 1, #Key-White: 4, #Key-Yellow: 2,
Classification: / Desktop with Display,
Featuring: Scientific functions, Procent, Square root, PI, Logic-technology: VLSI (Very Large Scale Integration), calculator-on-a-Chip, Memories: 1,
Related with: OLYMPIA_docu: 17202821 (Broch.) CD602; OLYMPIA_docu: (Ad.) CD602: Il calcolatore da tavolo...; OLYMPIA_docu: (Ad.) CD602: Un calcolatore elettronico...; OLYMPIA_docu: 17207904 (Service) *,
Components: 87 ... 7 Capacitor(s), 4 Diode(s), 53 Resistor(s), 21 Transistor(s), 1 IC(s),
Main Components: ROCKWELL: A4001,
Resemblance with: PRIVILEG: ESR Diplom,
Known Serial-numbers: 002998 | 8436100019002998 (84.361-0001.9, 002 998) (List of all S/Ns from OLYMPIA)
Collector value: 7/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: Modern design with some early scientific functions that are a little inaccurate. Quite a surprise on switch-on as the long display filter is hardly utilised on this model.
The keyboard is a mess but the logic is only let down by the pseudo fixed decimal bug.

Internet: Link-1: RECHENKASTEN, Link-2: VINTAGE TECHNOLOGY

Item

Internals (PCB)
(Courtesy of: DUDEK Emil)

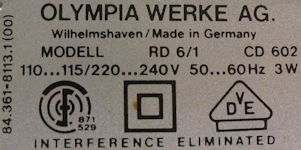

Label, name plate

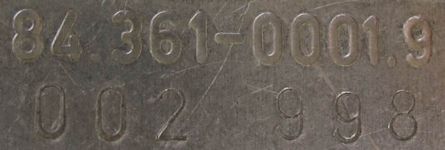

S/N: 8436100019002998 (84.361-0001.9, 002 998)

Serial number
843618113100 (84.361-8113.1(00))
