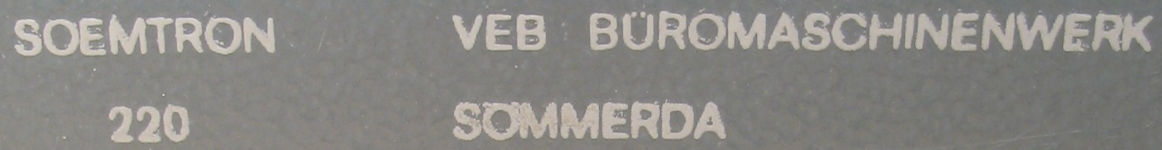

AKA: ETR 220, Product number (P/N): 220,
Keywords/Tags: 220 | ETR220 (ETR 220)
Date of intro: 1966, Origin: DDR (List), Dimensions: 450x380x180mm, Weight: 15000g,
Display: Type = Display (Nixie) (List), Brand = WF: Z570M {15x}, Digits = 15,
Number of keys: 32,
Classification: / Desktop with Display / Memory (core),
Featuring: Logic-technology: DTL (Diode Transistor Logic), discrete components, Memories: 3, Cores: 384 (6x16x6), Memory-technology: Memory (core),
Related with: SOEMTRON_docu: (Instr.) 220; SOEMTRON_docu: (Instr.) Bedienungsanleitung (220),
Components: 2737 ... 376 Capacitor(s), 1021 Diode(s), 1083 Resistor(s), 257 Transistor(s),
Main Components: (Discrete components),

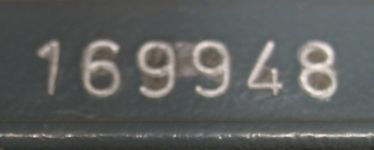

Known Serial-numbers: 127728 | 130034 | 134407 | 146558 | 169948 | 48272 | 70829 | S07366 (S/0 73/66) (List of all S/Ns from SOEMTRON)
Collector value: 9.5/10,
Info: Operates on 15-bit numbers, 4 arithmetic operations and exponentiation. The machine has a 3 collecting memory register.
Internet: Link-1, Link-2: THE DAWN OF PERSONAL ELECTRONIC CALCULATORS AND COMPUTERS
|
Item |
|
|
|
|
|
|
|
|
|
|
Internals (PCB) 06 05220700763039 (05-220-7007-6 (3039)) |
Internals (PCB) 07 05220700683038 (05-220-7006-8 (3038)) |
Internals (PCB) 08 05220700513037 (05-220-7005-1 (3037)) |
Internals (PCB) 09 05220700433036 (05-220-7004-3 (3036)) |
Internals (PCB) 10 05220700353035 (05-220-7003-5 (3035)) |
Internals (PCB) 11 05224700254638 (05-224-7002-5 (4638)) |
Internals (PCB) 12 05220700103033 (05-220-7001-0 (3033)) |
Internals (backPlane) |
Internals (backPlane) 2990052207013 (2990-05-220-7013) |
Connector |
