FRIDEN: 1166
(Page 1/1)


AKA: 1166 electronic calculator, SINGER, AKA (Label): ELECTRONIC CALCULATOR, Product number (P/N): 1166,
Keywords/Tags: 1166 | electronic calculator | SINGER
Date of intro: 1969, Origin: USA (List),
Display: Type = Display (Cathode Ray Tube) (List), Brand = WESTINGHOUSE: 3WP1, Digits = 13,
Number of keys: 23,
Classification: / Desktop with Display / RPN (Reverse Polish Notation) / Memory (delay line),
Featuring: Memories: 2, Memory-technology: Memory (delay line),
Related with: FRIDEN_docu: INT1055 (Broch.) Dromen zijn geen bedrog (1152),
Main Components: TEXAS INSTRUMENTS: SN1286AN; TEXAS INSTRUMENTS: SN1287AN; TEXAS INSTRUMENTS: SN1288AN,
Other components: FAIRCHILD: 993059; MOTOROLA: MC830P; MOTOROLA: MC846P; MOTOROLA: MC862P; SIGNETICS: N7476B; TEXAS INSTRUMENTS: SN7400N; TEXAS INSTRUMENTS: SN7473N; TEXAS INSTRUMENTS: SN7474N; TEXAS INSTRUMENTS: SN7476N; TEXAS INSTRUMENTS: SN9095; TEXAS INSTRUMENTS: SN15830N; TEXAS INSTRUMENTS: SN15832N; TEXAS INSTRUMENTS: SN15836N; TEXAS INSTRUMENTS: SN15846N; TEXAS INSTRUMENTS: SN15862N,
Original Equipment Manufacturer : FRIDEN: 1166 (List of all Export-OEM-models from FRIDEN), Resemblance with: ICE-FELIX: CE33,
Known Serial-numbers: 20710 | 22927 (List of all S/Ns from FRIDEN)
Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: Low-cost version of the SINGER: 1160, supporting 13 digits instead of 14.
Internet: Link-1, Link-2: YouTube, Link-3

Item

Additional picture

Bottom

Rear

Display

Internals

Internals (display)

Internals (PCB)
1
7002181REV2 (7002181 REV-2)

Internals (PCB)
2
7016701REV1 (7016701 REV1)

Internals (PCB)
3
7016704REV1 (7016704 REV1)

Internals (PCB)
4
7016707REV1 (7016707 REV1)

Internals (PCB)
5
7016710REV1 (7016710 REV1)

Keyboard

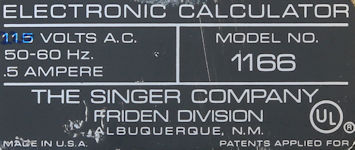

Label, name plate

Created: 10-mar-2016, Manual-update: 22-jan-2021, Batch-update: 06-aug-2022
