CANON: 161S
(Page 1/2)

Next Page ->


AKA: Canola 161S, AKA (Label): ELECTRONIC CALCULATOR, Product number (P/N): 161S,
Keywords/Tags: 161S | ELECTRONIC CALCULATOR | Canola
Date of intro: apr-1968, Origin: Japan (List), Dimensions: 395x300x155mm,
Power: AC,
Display: Type = Display (Nixie) (List), Digits = 16, Extra Display features: Type = Display (Neon bulb) (List), Quantity = 2,
Number of keys: 25, #Key-Black: 7, #Key-White: 18,
Round switch: [(ArrowUp)-5/4-(ArrowDown)], Miscellaneous switch: [ON-OFF],
Classification: / Desktop with Display / Memory (delay line),
Featuring: Logic-technology: SSI: TTL (Transistor Transistor Logic), Memory-technology: Memory (delay line),
Main Components: TEXAS INSTRUMENTS: SN3920N {16x}; TEXAS INSTRUMENTS: SN3925N {52x}; TEXAS INSTRUMENTS: SN3931N {10x}; TEXAS INSTRUMENTS: SN4552N {7x}; TEXAS INSTRUMENTS: SN4553N {5x}; TEXAS INSTRUMENTS: SN4554N {25x}; TEXAS INSTRUMENTS: SN4555N {2x}; TEXAS INSTRUMENTS: SN4556N {6x},
Known Serial-numbers: 220414 | 230669 | 731631 (List of all S/Ns from CANON)
Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: A Duplicate calculator is for sale/swap.

Item

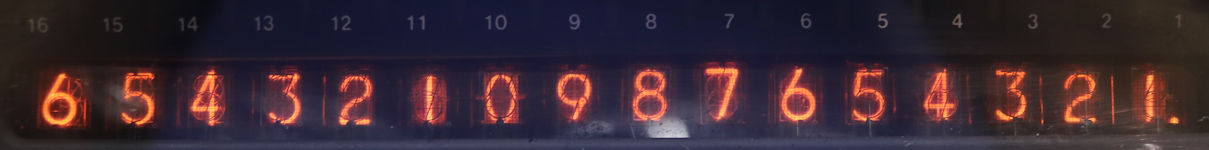

Display

Display
Frame

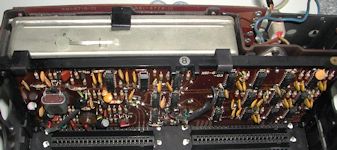

Internals

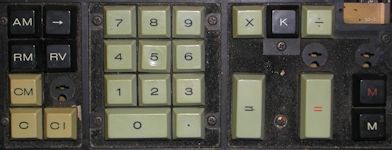

Internals (keyboard)

Internals (keyboard)

Internals (switch)
Decimal selection

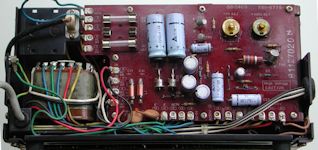

Internals (power supply)
X6167780… (X-61-6778-0… )

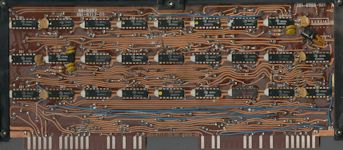

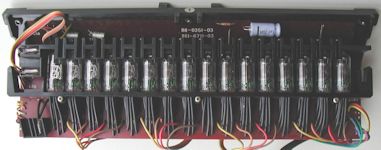

Internals (PCB)
01 (Display)
X61671103 (X61-6711-03)

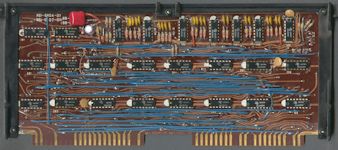

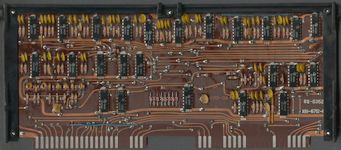

Internals (PCB)
02
X616712… ( X61-6712-…)

Internals (PCB)
03+06

Internals (PCB)
04
X61680402 (X-61-6804-02)

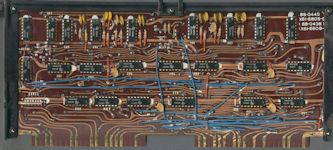

Internals (PCB)
05
X616805-… (X-61-6805-…)

Internals (PCB)
07
X61671705 (X-61-6717-05)

Internals (PCB)
08
X61670803 (X-61-6708-03)

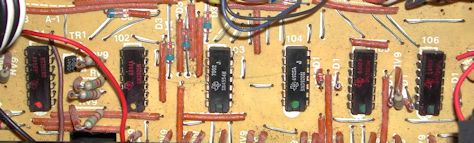

Internals (PCB)

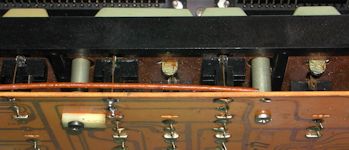

Above the keyboard

Internals (PCB)
Display

Instructions
Gebrauchsanweisung
S/N: 731631

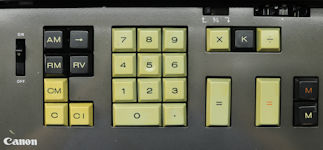

Keyboard

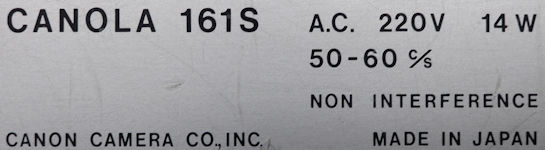

Label, name plate

Label, name plate / Rear
S/N: 731631

Created: 01-jan-2014, Manual-update: 19-mar-2017, Batch-update: 25-feb-2024

# Pageloads since 2018: 436

23 Pic(s),
