WANDERER: Conti (version-1)
(Page 1/3)

Next Page ->


Product number (P/N): Conti,
Keywords/Tags: Conti
Date of intro: 1965, Origin: Germany (List), Dimensions: 498x388x208mm, Weight: 2100g,
Power: AC,
Display: Type = Display (None) (List),
Number of keys: 35,
Classification: / Desktop with Printer,
Featuring: Programmable, Memory-technology: Memory (rope),
Related with: WANDERER_docu: rea1134b4I (Instr.) Conti; WANDERER_docu: (Ad.) Conti: Traza el camino en los sistemas electronicos...,
Components: 3567 ... 163 Capacitor(s), 115 Diode(s), 2383 Resistor(s), 906 Transistor(s),
Known Serial-numbers: 100728 (List of all S/Ns from WANDERER)
Collector value: 10/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

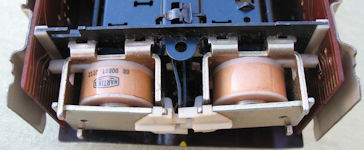

Internals (keyboard) / Relais

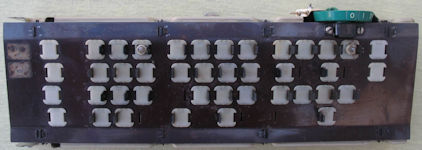

Internals (keyboard)
Bottom

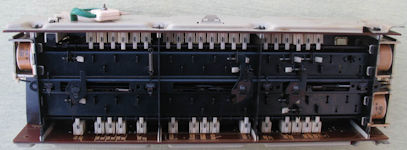

Internals (keyboard)
Bottom: Detail

Internals (keyboard)
Top

Internals (PCB)
#1 / 3
(#Resistors: 624, #Diodes: 90, #Transistors: 242, #Capacitors: 35)

Internals (PCB)
#1 / 3: Identification
77004009Z0 (77004009 Z0)

Internals (PCB)
#1+2 / 3
(#Resistors: 941, #Diodes: 24, #Transistors: 300, #Capacitors: 80)

Internals (PCB)
#2: Identification
77004010Z0 (77004010 Z0)

Internals (PCB)
#2+3 / 3

Internals (PCB)
#3 / 3: Front
(#Resistors: 818, #Diodes: 1, #Transistors: 364, #Capacitors: 48)

Internals (PCB)
#3 / 3: Rear

Internals (PCB)
#3: Identification
77004011Z0 (77004011 Z0)

Internals (PCB)
Identification numbers
77002104A

Internals (PCB)
Rope + Transistors

Assembly+Disassembly
(01): Bottom: Nut

Assembly+Disassembly
(02): Bottom: Bolt

Assembly+Disassembly
(03): Bottom: Supports/Frames

Assembly+Disassembly
(04): Uppercase: Printer: Circlip

Assembly+Disassembly
(05): Uppercase

Assembly+Disassembly
(06): Internals

Created: 06-apr-2010, Manual-update: 04-apr-2017, Batch-update: 26-feb-2024
