SHARP: CS242
(Page 1/1)


AKA: Compet 242, AKA (Label): MODEL(L) CS-242, ELECTRONIC CALCULATOR, Product number (P/N): CS242,
Keywords/Tags: CS242 | 242 | Compet
Date of intro: 1971, Origin: Japan (List),
Display: Type = Display (Nixie) (List), Digits = 14+1,
Number of keys: 23, #Key-Black: 18, #Key-Blue: 4, #Key-Red: 1,
Decimal switch: [F-7-6-4-3-2-1-0], Round switch: [(ArrowUp)-5/4-(ArrowDown)],
Classification: / Desktop with Display,
Featuring: Memories: 1,
Related with: SHARP_docu: (Ad.) *: 91% of Fortune's 100..,
Main Components: ROCKWELL: 10321NA; ROCKWELL: 10062NA; ROCKWELL: 10063NA; ROCKWELL: 10064NA; ROCKWELL: 10065NA; ROCKWELL: 10066NA,
Other components: NEC: µPD128C; NEC: µPD303C,
Known Serial-numbers: 11009007 | 11023208 | 15025906 | 17148306 | 21291702 (List of all S/Ns from SHARP)
Collector value: 8.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: FUNKY GOODS, Link-2: MUSEO CALCOLATORE LAURA TELLINI

Item

Box

Internals (keyboard)
Typical SHARP keyb

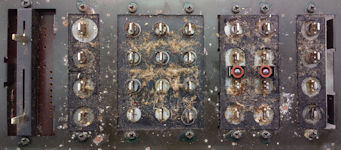

Internals (keyboard)
Uncleaned

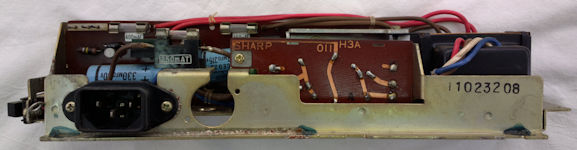

Internals (power supply)

Internals (PCB)
#1: Display: Back

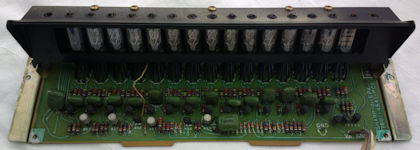

Internals (PCB)
#1: Display: Front

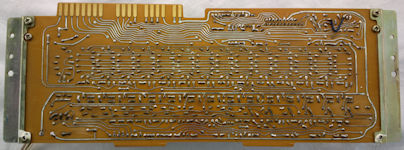

Internals (PCB)
#2: Back

Internals (PCB)
#2: Front
#011 EPA 4531-PCB-A?

Panel, cabinet
Access to PCB-connection

Panel, cabinet
Bottom

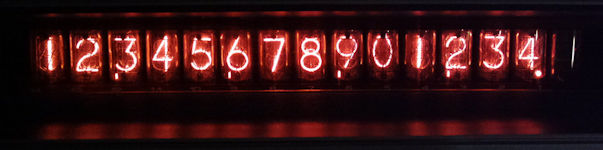

Display

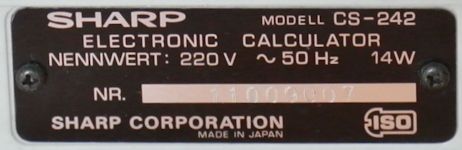

Label, name plate

Label, name plate
S/N: 11009007

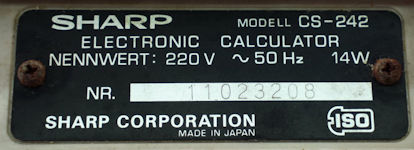

Label, name plate
S/N: 11023208

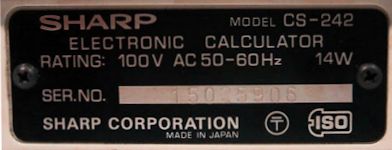

Label, name plate
S/N: 15025906

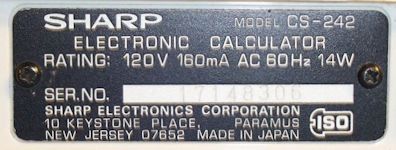

Label, name plate
S/N: 17148306

Protection (dust cover)

Created: 01-jan-2014, Manual-update: 20-apr-2017, Batch-update: 14-jan-2022
