INDUSTRIA MACCHINE ELETTRONICHE (IME): 84
(Page 1/4)

Next Page ->


Product number (P/N): 84,
Keywords/Tags: 84
Date of intro: 1964, Origin: Italy (List), Dimensions: 460x430x170mm,
Power: AC,
Display: Type = Display (Nixie) (List), Digits = 16,
Number of keys: 29, #Key-Black: 8, #Key-Blue: 2, #Key-Green: 1, #Key-Red: 3, #Key-White: 14, #Key-Yellow: 1,
Classification: / Desktop with Display / Memory (core),
Featuring: Logic-technology: DTL (Diode Germanium-Transistor Logic), discrete components, Memory-technology: Memory (core),
Related with: (Docu_Articles): 196602: Viewing the new Calculators; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Instr.) 84; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Ad.) 84: Calculatrice élec...; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Ad.) 84: IME USA, Anche...; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Ad.) 84: La calculatrice qui..; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Ad.) 84: La prima calcolatr...; INDUSTRIA MACCHINE ELETTRONICHE (IME)_docu: (Broch.) 84: Elektronik auf...,
Components: 3629 ... 569 Capacitor(s), 1006 Diode(s), 1654 Resistor(s), 400 Transistor(s),
Other components: RAY: T6055; RAY: T6056,
Serie-members: INDUSTRIA MACCHINE ELETTRONICHE (IME): 84 (); INDUSTRIA MACCHINE ELETTRONICHE (IME): 84M (); INDUSTRIA MACCHINE ELETTRONICHE (IME): 84RC (),
Known Serial-numbers: 18400451 (1.8400451) | 51100547 | 68402665 (6.8402665) (List of all S/Ns from INDUSTRIA MACCHINE ELETTRONICHE (IME))
Initial Cost Price: USD1295.00 (1966), Collector value: 10/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1, Link-2: COMPUTERMUSEUM DER FAKULÄT INFORMATIK Stuttgart, Link-3: COMPUTER HISTORY MUSEUM
Intro-Sequence #: 1, Successor: INDUSTRIA MACCHINE ELETTRONICHE (IME): 84RC

Item

Bottom

Internals

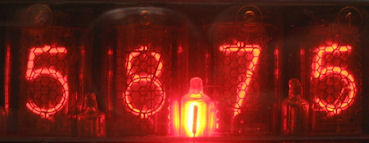

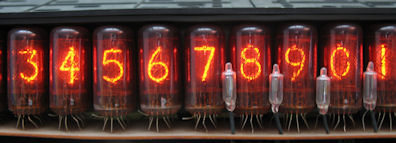

Internals (display)

Internals (display)

Internals (display)

Internals (PCB)
01: Component site

Internals (PCB)
01: Hard-wired

Internals (PCB)
02 to 06: Bottom site

Internals (PCB)
02 to 06: Component site

Internals (PCB)
07: Bottom site

Internals (PCB)
07: Component site

Internals (PCB)
08 to 11: Bottom site

Internals (PCB)
08 to 11: Component site

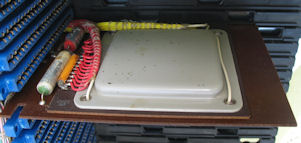

Internals (PCB) / Memory (core)
12: Component site (Core Mem)

Internals (PCB)
13 to 16: Bottom site

Internals (PCB)
13 to 16: Component site

Internals (PCB)
17: Bottom site

Internals (PCB)
17: Component site

Internals (PCB)
18: Bottom site

Internals (PCB)
18: Component site

Created: 17-may-2007, Manual-update: 07-apr-2017, Batch-update: 25-feb-2024

# Pageloads since 2018: 432

67 Pic(s),
