OLYMPIA: RAE4/15
(Page 1/1)


AKA (Label): 53608, Typ: RAE 4/15, D1, Product number (P/N): RAE415 (RAE4/15),
Keywords/Tags: RAE415 (RAE4/15)
Date of intro: jun-1964, Dimensions: 420x390x210mm,
Power: AC,
Display: Type = Display (Nixie) (List), Brand = TELEFUNKEN: ZM1080 {15x}, Digits = 15,
Number of keys: 32,
Classification: / Desktop with Display / Memory (core),
Featuring: Memories: Cores: 384 (8x8x6), Memory-technology: Memory (core),
Other components: TELEFUNKEN: AC122; TELEFUNKEN: AF138,
Known Serial-numbers: 01439 | 02767 | 03625 (List of all S/Ns from OLYMPIA)
Collector value: 10/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: First electronic machine from OLYMPIA.
This machine has four functions machine with three essential registers (1 display and 2 calculating registers) and 2 registers (core memories)
for storing amounts or memorising constant figures.
Each individual register has a capacity of fifteen digits while some answers can be obtained up to 26 digits. However, the division is limited to 14 digits.
The floating decimal point is a full automatic feature.
All registers are interconnected, so that results can be transferred from one register to another.

Internet: Link-1: THE DAWN OF PERSONAL ELECTRONIC CALCULATORS AND COMPUTERS, Link-2: MUSEILLO DEL CÁLCULO Y DE LA INFORMÁTICA
Intro-Sequence #: 1

Item

Additional picture
Located at HEINZ N

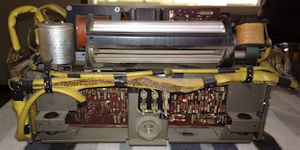

Internals

Internals
S/N: 02767

Internals
S/N: 02767

Internals
S/N: 02767

Internals
S/N: 02767

Internals (display)
S/N: 02767

Panel, cabinet
S/N: 02767
9480311101 (94.8031-110.1)

Panel, cabinet
S/N: 02767
9480061101 (94.8006.-110-1.)

Advertisement
Du calcul électronique à l'écriture électrique...
Pag.127

Advertisement
The biggest noise in calculating machines is compl

Brochure
Der neue elektronische Tischrechner - Schnell unf
Pag.1/2
17202601 (1/72/026/01)

Brochure
Der neue elektronische Tischrechner - Schnell unf
Pag.2/2
17202601 (1/72/026/01)

Brochure
OLYMPIA RAE 4/15
Pag.1/6
17202601B (1/72/026/01/B)

Brochure
OLYMPIA RAE 4/15
Pag.2+3/9
17202601B (1/72/026/01/B)

Brochure
OLYMPIA RAE 4/15
Pag.4/6
17202601B (1/72/026/01/B)

Brochure
OLYMPIA RAE 4/15
Pag.5+6/6
17202601B (1/72/026/01/B)

Article (fragment)
Het testen van een elektronische tafelrekenmachine

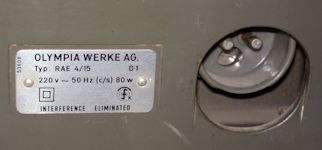

Label, name plate

Serial number
S/N: 02767

Created: 31-jul-2008, Manual-update: 20-mar-2017, Batch-update: 24-jun-2022

# Pageloads since 2018: 677

21 Pic(s),
