COMMODORE: 412
(Page 1/1)


AKA (Label): cbm*412, CODE NO 7460-11, Product number (P/N): 746011 (7460-11),
Keywords/Tags: 746011 (7460-11) | cbm | 412
Date of intro: 1970, Origin: Japan (List), Dimensions: 300x246x200mm, Weight: 3000g,
Power: AC,
Display: Type = Display (VFD tube) (List), Digits = 12,
Number of keys: 20, #Key-Blue: 2, #Key-Red: 2, #Key-White: 16,
Decimal switch: [0-1-2-4-6],
Classification: / Desktop with Display,
Featuring: Procent,
Main Components: AMERICAN MICRO SYSTEMS (AMI): 40912001; AMERICAN MICRO SYSTEMS (AMI): 41012002; AMERICAN MICRO SYSTEMS (AMI): 41112003; AMERICAN MICRO SYSTEMS (AMI): 41212004; AMERICAN MICRO SYSTEMS (AMI): 41312005; AMERICAN MICRO SYSTEMS (AMI): 41412006,
Other components: HITACHI: HD3103P {2x}; HITACHI: HD3106; HITACHI: HD3107; MITSUBISHI: M58204,
Resemblance with: RICOH: 1200D, Made by: UNICOM (List of all Import-OEM-models for COMMODORE),
Known Serial-numbers: B28643 (B 28643), MODEL 7460-20 | E29013 (E-29013) | E29175 (E-29175) | E29175 (E-29175), MODEL 7460-11 | MODEL 7460-3021B | MODEL 7460-4020A (List of all S/Ns from COMMODORE)
Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

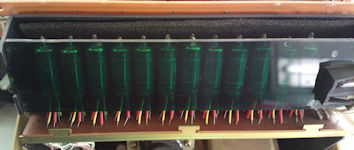

Internals (display)

Internals (keyboard)

Internals (PCB)
S/N: MODEL 7460-3021B
74603021B (7460-3021B)

Internals (PCB)
S/N: MODEL 7460-4020A
74604020A (7460-4020A)

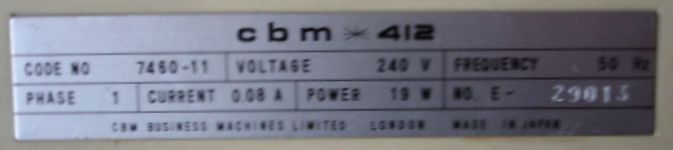

Label, name plate
S/N: E29013 (E-29013)

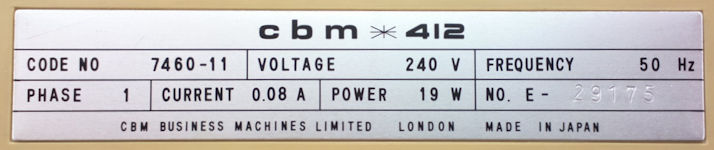

Label, name plate
S/N: E29175 (E-29175)

Created: 25-may-2000, Manual-update: 03-jun-2018, Batch-update: 16-may-2022

# Pageloads since 2018: 206

7 Pic(s),
