SHARP: PC1001
(Page 1/1)


AKA: PC-1001, AKA (Label): MODEL(L) PC-1001, ELECTRONIC CALCULATOR, Product number (P/N): PC1001 (PC-1001),
Keywords/Tags: PC1001 (PC-1001)
Date of intro: 1973, Origin: Japan (List), Dimensions: 226x140x71mm, Weight: 1100g,
Power: AC,
Display: Type = Display (VFD tube) (List), Brand = ISEDEN: SP8D1 {2x}; FUTABA: DG8R {12x}, Digits = 14, Extra Display features: Type = Display (LED) (List), Quantity = 2,
Number of keys: 31, #Key-Black: 26, #Key-Blue: 4, #Key-Red: 1,
Miscellaneous switch: [DEG-RAD EXP-FLOAT], Indicators: PRO/BUSY HALT,
Classification: / Desktop with Display,
Featuring: Square root, PI, Programmable, Logic-technology: LSI (Large Scale Integration), calculator-chipset, Memories: 8, Programmable Steps: 64,
Main Components: SHARP: 011EPB; SHARP: 011GED,
Serie-members: SHARP: PC1001 (Two ROM's); SHARP: PC1002 (Three ROM's),
Known Serial-numbers: 31000706 | 3104280 | 31042807 | 31058207 | 35008311 | 35052006 (List of all S/Ns from SHARP)
Initial Cost Price: USD575.00, Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Internet: Link-1: THE OLD CALCULATOR MUSEUM, Link-2: JOHN WOLFF's WEB MUSEUM, Link-3: SILICIUM

Item

Internals

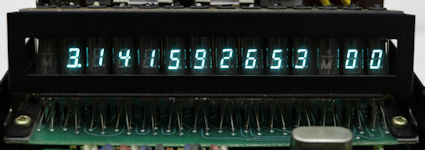

Internals (display)

Internals (keyboard)
DIAPHRAGM KEYBOARD, PAT. 3.594.684

Internals (power supply)

Instructions
Instruction Manual

Advertisement
The scientific programmable big enough for your de
IEEE Spectrum
(1974)

Advertisement (fragment)
The facts

Brochure
(J)

Label, name plate / Label (inspection) / Bottom
S/N: 31000706

Protection (dust cover)
