BURROUGHS: C5255
(Page 1/1)


AKA (Label): C SERIES, C 5255 STYLE, Product number (P/N): C5255 (C-5255),
Keywords/Tags: C5255 (C-5255)
Date of intro: 1971, Origin: France (List), Dimensions: 280x200x100mm,
Power: AC,
Display: Type = Display (Gas disharge) (List), Brand = BURROUGHS: BR11402, Digits = 10+1,
Number of keys: 20, #Key-Grey: 4, #Key-Red: 1, #Key-White: 15,
Keyboard Array (Rows x Columns): 04x06,
Decimal switch: [6-4-3-2-0], Miscellaneous switch: [K-.],
Classification: / Desktop with Display,
Featuring: Logic-technology: LSI (Large Scale Integration), calculator-chipset, Memories: 1,
Related with: BURROUGHS_docu: 2004693Du (Broch.) C5155,C5255,
Main Components: AMERICAN MICRO SYSTEMS (AMI): 12360574; AMERICAN MICRO SYSTEMS (AMI): 12360582; AMERICAN MICRO SYSTEMS (AMI): 12360590,
Known Serial-numbers: C046733 | C118680024 (C 118680 024) | EC008089024 | EC008089024 (EC 008089 024) | EC023716024 (EC 0237 16 024) (List of all S/Ns from BURROUGHS)
Collector value: 8/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

Additional picture
Located at BONAMI

Internals

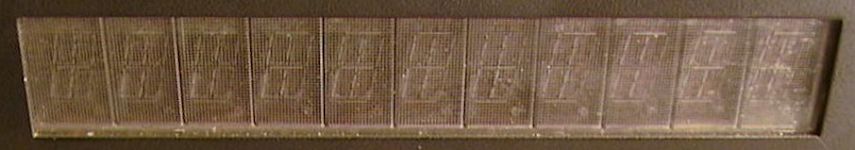

Internals (display)

Internals (PCB)
From S/N: (Front)
(28-dec-1971)
12391348 (1239 1348)

Internals (PCB) / Internals (power supply)
From S/N: (Front)
(05-jan-1972)
12378949 (1237 8949)

Internals (PCB)
From S/N: (Rear)
(28-dec-1971)
12391348 (1239 1348)

Internals (PCB)
From S/N: C046733

Internals (PCB) / Internals (power supply)
From S/N: C046733

Internals (semiconductor)

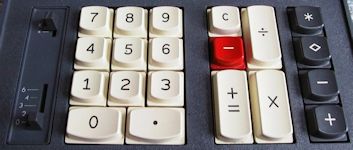

Keyboard

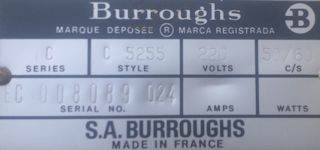

Label, name plate
S/N: EC008089024

Created: 01-jan-2014, Manual-update: 17-jun-2022, Batch-update: 24-jun-2022

# Pageloads since 2018: 179

12 Pic(s),
