CALCUSEUM BRUNSVIGA: 10R (version-2)

BRUNSVIGA: 10R (version-2)
(Page 1/1)

	AKA: Der Braunschweiger, AKA (Label): 84.370-3001.9, 84.370-8131.1 [01], Product number (P/N): 10R, Keywords/Tags: 10R \| Der Braunschweiger Date of intro: 1975, Origin: Germany (List), Dimensions: 200x58x15mm, Weight: 95g, Power: 6V: (AAA x4) + Adaptor, Display: Type = Display (VFD) (List), Digits = 8+1, Number of keys: 26, Miscellaneous switch: [(Blank)-ON (Angle)-(Angle)], Classification: / Desktop with Display / Ruler / Tool, Featuring: Square root, PI, Main Components: ROCKWELL: A4001PC, Known Serial-numbers: 02524 \| 032?? \| 03266 \| 09394 (List of all S/Ns from BRUNSVIGA) Collector value: 8.5/10, Courtesy of: CALCUSEUM (Serge DEVIDTS),
Item

AKA: Der Braunschweiger, AKA (Label): 84.370-3001.9, 84.370-8131.1 [01], Product number (P/N): 10R,
Keywords/Tags: 10R | Der Braunschweiger
Date of intro: 1975, Origin: Germany (List), Dimensions: 200x58x15mm, Weight: 95g,
Power: 6V: (AAA x4) + Adaptor,
Display: Type = Display (VFD) (List), Digits = 8+1,
Number of keys: 26,
Miscellaneous switch: [(Blank)-ON (Angle)-(Angle)],
Classification: / Desktop with Display / Ruler / Tool,
Featuring: Square root, PI,
Main Components: ROCKWELL: A4001PC,
Known Serial-numbers: 02524 | 032?? | 03266 | 09394 (List of all S/Ns from BRUNSVIGA)
Collector value: 8.5/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),

Item

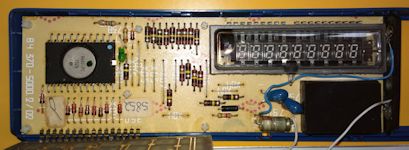

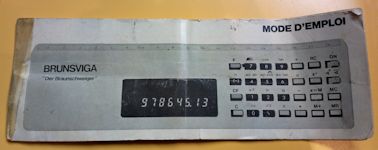

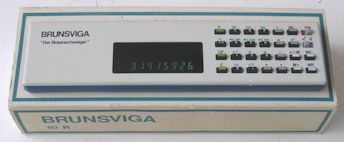

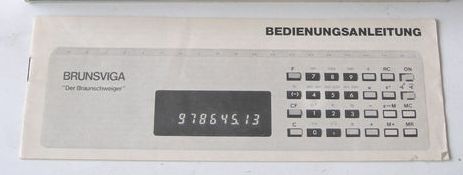

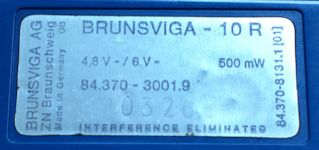

Box	Internals 843705000202 (84 370-5000.2 / 02)	Internals (keyboard)	Internals (keyboard)	Internals (keyboard)	Instructions Bedienungsanleitung	Instructions Mode d'emploi	Label, name plate S/N: 02524	Label, name plate S/N: 032??	Label, name plate S/N: 09394

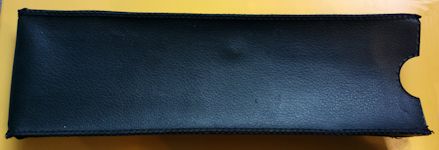

Protection (pouche)

Created: 09-jan-2015, Manual-update: 01-apr-2017, Batch-update: 28-jul-2024
