FRIDEN: 1162
(Page 1/1)


AKA: 1162 electronic calculator, SINGER, AKA (Label): ELECTRONIC CALCULATOR, MODEL NO. 1162, Product number (P/N): 1162,
Keywords/Tags: 1162 | electronic calculator | SINGER
Date of intro: 1969, Origin: USA (List), Dimensions: 324x318x171mm,
Power: AC,
Display: Type = Display (Cathode Ray Tube) (List), Digits = 14+1: (x2),
Keyboard: Reed-switch, Number of keys: 23, #Key-Black: 11, #Key-White: 12,
Classification: / Desktop with Display / RPN (Reverse Polish Notation) / Memory (delay line),
Featuring: Square root, Memory-technology: Memory (delay line),
Related with: FRIDEN_docu: (Instr.) *: 1160,1162,
Main Components: TEXAS INSTRUMENTS: SN1286AN; TEXAS INSTRUMENTS: SN1287AN; TEXAS INSTRUMENTS: SN1288AN,
Other components: SIGNETICS: N7474A; TEXAS INSTRUMENTS: SN7400N; TEXAS INSTRUMENTS: SN7473N; TEXAS INSTRUMENTS: SN7474N; TEXAS INSTRUMENTS: SN9095; TEXAS INSTRUMENTS: SN15830N; TEXAS INSTRUMENTS: SN15846N; TEXAS INSTRUMENTS: SN15862N,
Known Serial-numbers: 02304 | 116200880 (1162 00880) | 116201527 (1162 01527) | 116202723 (1162 02723) | 116202859 (1162 02859) | 116206879 (1162 06879) (List of all S/Ns from FRIDEN)
Initial Cost Price: USD1195.00, Collector value: 9/10,
Courtesy of: CALCUSEUM (Serge DEVIDTS),
Info: Same as the SINGER: 1160, but supporting a Square Root function
Internet: Link-1: THE DAWN OF PERSONAL ELECTRONIC CALCULATORS AND COMPUTERS, Link-2: THE OLD CALCULATOR MUSEUM, Link-3, Link-4

Item

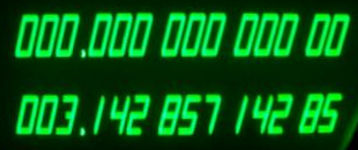

Display

Internals

Internals

Internals

Internals

Auctions: eBay
eBay
(31-mar-2014)
Final bid: EUR287.31

Instructions
1160/1162 electronic calculators by FRIDEN
(Courtesy of: DE WEGER)
Link-1

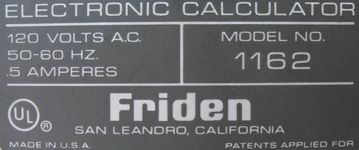

Label, name plate

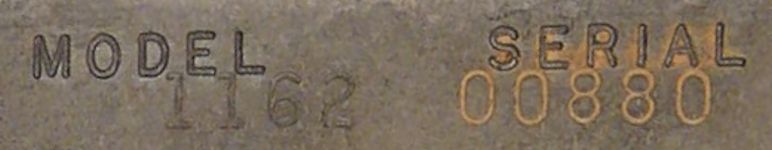

Serial number
S/N: 116200880 (1162 00880)

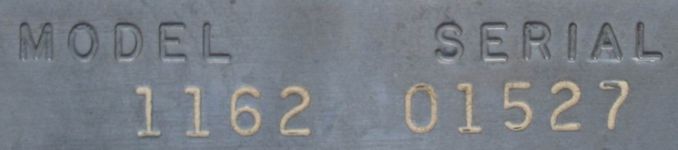

Serial number
S/N: 116201527 (1162 01527)

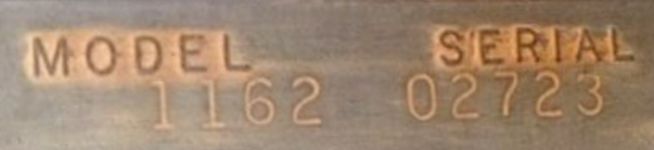

Serial number
S/N: 116202723 (1162 02723)

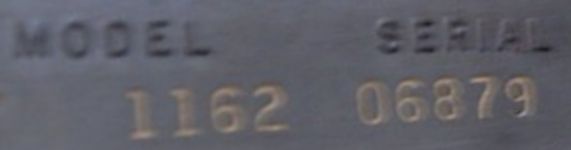

Serial number
S/N: 116206879 (1162 06879)

Created: 08-mar-2016, Manual-update: 12-nov-2017, Batch-update: 24-jun-2022

# Pageloads since 2018: 144

13 Pic(s),
